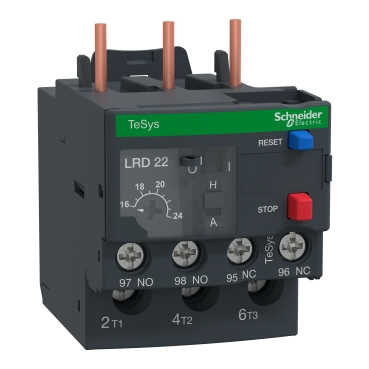

The Schneider Electric LRD226 is a TeSys LRD thermal overload relay designed for motor protection applications. This relay is part of the established TeSys LRD series, known for its robust design and reliable performance in demanding industrial environments. It provides essential overcurrent and phase-loss protection for three-phase motors.

Technical details

• Series: TeSys LRD
• Type: Thermal Overload Relay
• Adjustable Current Range: 16...24 A
• Protection Class: Class 10A
• Mounting Type: Direct mount or separate mounting with appropriate accessories
• Reset Method: Manual or automatic reset
• Number of Auxiliary Contacts: Typically 1 NO + 1 NC (verify against datasheet for specific configuration)
• Operating Temperature Range: -25°C to +60°C (verify against datasheet)

Applications & compatibility

This LRD226 thermal overload relay is commonly integrated into motor control centers (MCCs) and individual motor starter assemblies. It is suitable for protecting motors used in a wide array of industrial machinery, including pumps, fans, compressors, conveyors, and machine tools across various sectors such as manufacturing, water treatment, and material handling.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LRD226 or contact our technical team for cross-reference assistance with compatible TeSys components.
