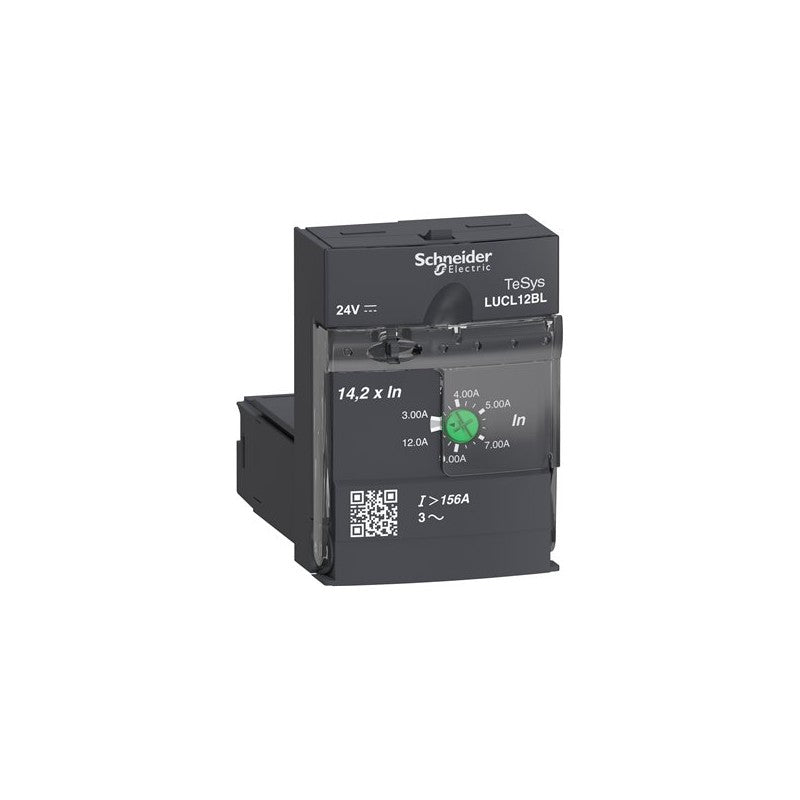

The Schneider Electric LUCL12BL is a standard control unit within the TeSys U motor control system. Designed for three-phase motor applications, this unit provides magnetic protection and operates with a 24V DC coil voltage. It is engineered to manage motor loads up to 12 Amperes.

Technical details

• Series: TeSys U
• Type: Standard Control Unit
• Motor Type: 3-Phase
• Current Rating: 3-12A (adjustable range)
• Protection Type: Magnetic (overload and short-circuit)
• Coil Voltage: 24V DC
• Number of Poles: 3P (for motor connection)
• Mounting: Designed for integration within the TeSys U system architecture.

Applications & compatibility

This TeSys U control unit is suitable for direct mounting on TeSys U starters, providing a compact and integrated motor control solution. It is commonly found in applications such as conveyor systems, pump controls, fan drives, and general machine automation where precise motor protection and control are required.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LUCL12BL or contact our technical team for cross-reference assistance with compatible TeSys U components.
