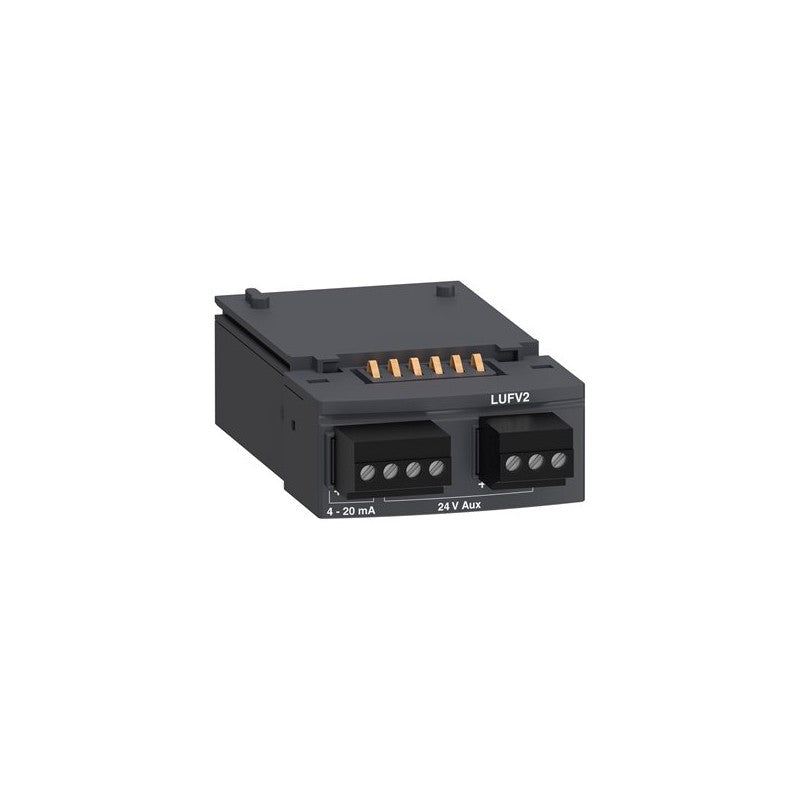

The Schneider Electric TeSys U LUF function block provides motor load indication via a 4-20 mA output signal. This component is designed to integrate with the TeSys U motor starter system, offering essential diagnostic feedback for motor control applications. Its primary function is to translate motor load conditions into a standardized analog signal for monitoring and control systems.

Technical details

• Series: TeSys U
• Product Type: Function Block for Motor Load Indication
• Output Signal: 4-20 mA analog current loop
• Functionality: Provides real-time motor load status
• Compatibility: Designed for use with TeSys U motor starters
• Voltage Class: Specific voltage requirements should be verified against the TeSys U starter's specifications.
• Current Rating: Not applicable for the function block itself; refers to the motor current being monitored.
• Protocol: Analog signal output (4-20 mA)

Applications & compatibility

This LUF function block is integral to monitoring motor performance in various industrial automation scenarios. It is commonly employed in applications such as conveyor systems, pump controls, fan drives, and other machinery where continuous insight into motor load is critical for operational efficiency and preventative maintenance. Its integration with the TeSys U platform ensures seamless compatibility within that specific motor control ecosystem.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LUFV2 or contact our technical team for cross-reference assistance with compatible TeSys U components.
