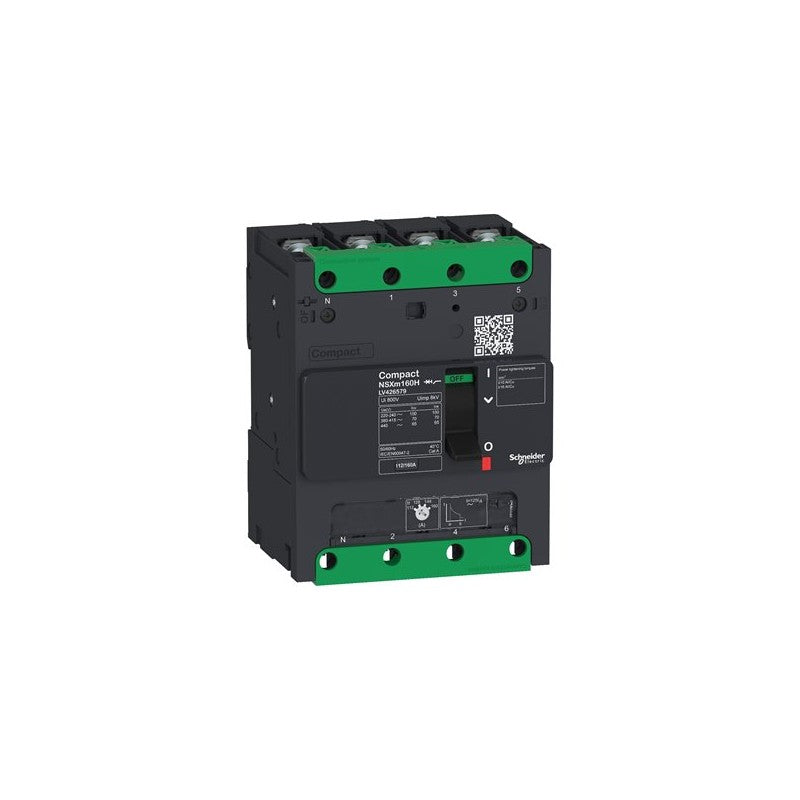

The Schneider Electric LV426569 is a Compact NSXm H series circuit breaker designed for robust electrical protection in industrial environments. This 4-pole, 3d device features a 160 Ampere rating and a high interrupting capacity of 70 kA at 415 VAC, making it suitable for demanding power distribution applications. Its integrated TMD trip unit ensures reliable overcurrent and short-circuit protection.

Technical details

• Series: Compact NSXm H
• Number of Poles: 4
• Interrupting Capacity: 70 kA at 415 VAC
• Current Rating: 160 A
• Trip Unit Type: TMD
• Configuration: 3d (3 normally open, 3 normally closed auxiliary contacts)
• Connection Type: Compression lugs and busbar connectors
• Dimensions: Verify with manufacturer datasheet for precise physical dimensions.
• Voltage Rating: Designed for 415 VAC systems.

Applications & compatibility

This circuit breaker is commonly employed in main distribution panels, motor control centers, and sub-distribution boards within manufacturing facilities. It is compatible with systems requiring high fault current withstand capabilities, such as those found in heavy machinery, process control, and power generation auxiliary circuits.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV426569 or contact our technical team for cross-reference assistance with compatible Compact NSXm components.
