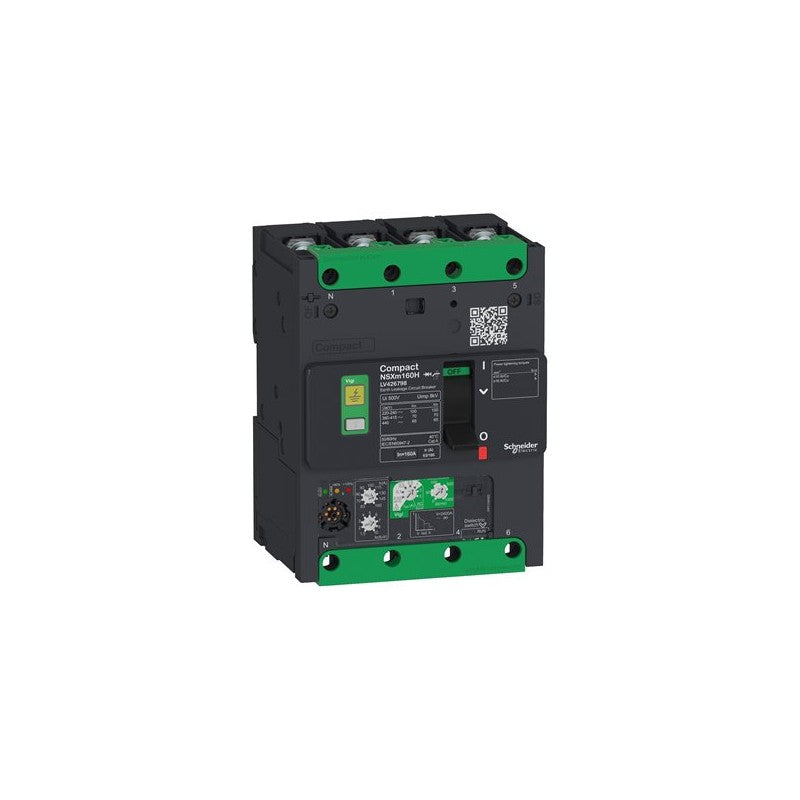

The Schneider Electric Compact NSXM B circuit breaker, model LV426767, is a 4-pole device designed for robust electrical protection in industrial environments. Featuring a 100 A current rating and a breaking capacity of 25 kA at 415 VAC, this breaker is engineered to safeguard electrical circuits against overloads and short circuits. It incorporates the Micrologic Vigi 4.1 trip unit, providing advanced protection and monitoring capabilities.

Technical details

• Series: Compact NSXM B
• Poles: 4
• Rated Current: 100 A
• Breaking Capacity: 25 kA at 415 VAC
• Trip Unit: Micrologic Vigi 4.1
• Terminal Type: Compression lugs and busbar connectors
• Voltage Rating: 415 VAC

Applications & compatibility

This Schneider Electric circuit breaker is suitable for use in a wide range of industrial power distribution systems, including motor control centers, switchboards, and panelboards. Its robust construction and advanced trip unit make it ideal for applications requiring reliable protection in demanding environments such as manufacturing plants, processing facilities, and infrastructure projects.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV426767 or contact our technical team for cross-reference assistance with compatible Compact NSXM B components.
