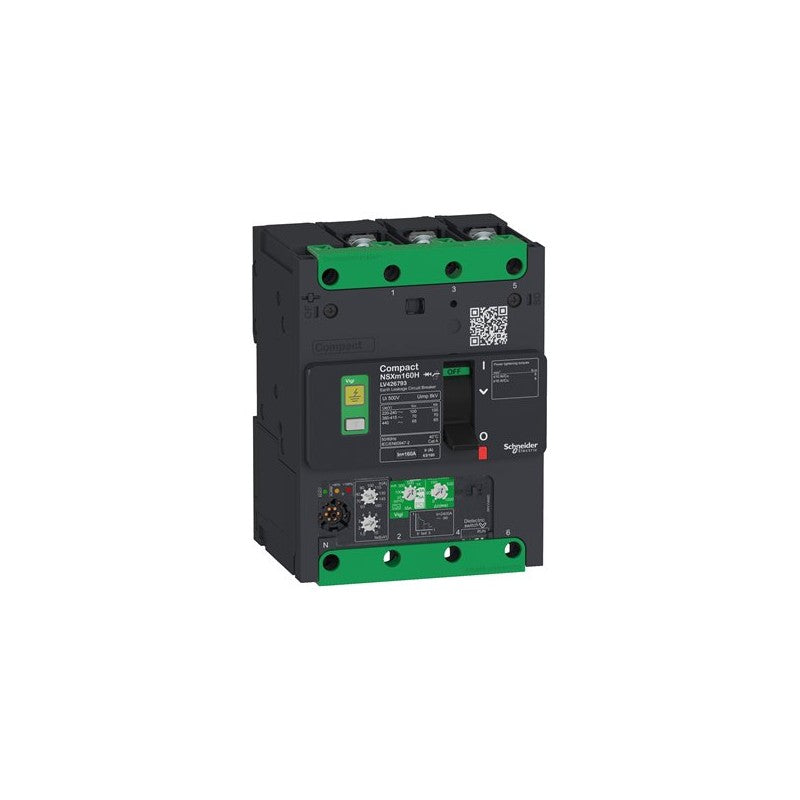

The Schneider Electric Compact NSXm F circuit breaker is designed for robust electrical protection in demanding industrial environments. This 3-pole breaker, part of the NSXm series, features a 160 Ampere rating and a breaking capacity of 36 kA at 415 VAC, making it suitable for applications requiring high fault current interruption. It integrates the Micrologic Vigi 4.1 trip unit for advanced protection and monitoring capabilities.

Technical details

• Series: Compact NSXm F
• Poles: 3
• Rated Current: 160 A
• Breaking Capacity: 36 kA at 415 VAC
• Trip Unit: Micrologic Vigi 4.1
• Connection Type: Compression lugs and busbar connectors
• Voltage Rating: 415 VAC (confirmed for breaking capacity)
• Ground Fault Protection: Integrated via Micrologic Vigi 4.1 trip unit

Applications & compatibility

This circuit breaker is commonly deployed in power distribution panels, motor control centers, and electrical switchgear for protecting circuits in manufacturing plants, processing facilities, and building infrastructure. Its specifications make it compatible with systems requiring reliable overcurrent and ground fault protection for loads up to 160 Amperes.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV426773 or contact our technical team for cross-reference assistance with compatible NSXm components.
