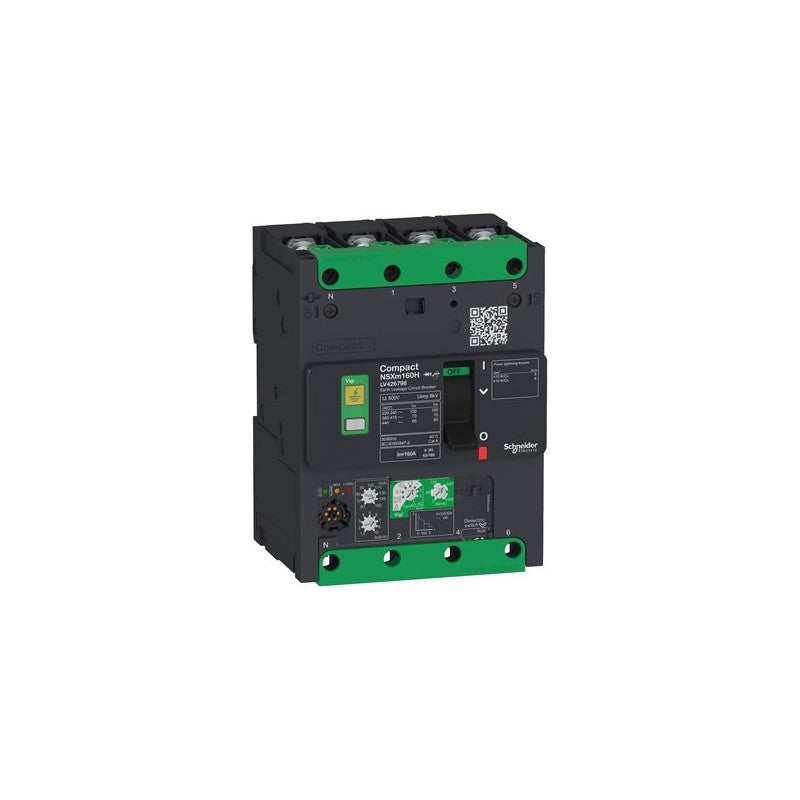

The Schneider Electric Compact NSXm F circuit breaker is engineered for robust electrical protection in demanding industrial environments. This 4-pole breaker, part of the NSXm series, offers a significant interrupting capacity of 36 kA at 415 VAC, making it suitable for applications requiring high fault current withstand. It integrates the Micrologic Vigi 4.1 electronic trip unit for advanced protection and control functionalities.

Technical details

• Series: Compact NSXm F
• Poles: 4
• Rated Current: 160 A
• Interrupting Capacity: 36 kA at 415 VAC
• Trip Unit: Micrologic Vigi 4.1 (Electronic with Earth Leakage Protection)
• Connection Type: Compression lugs and busbar connectors
• Voltage Rating: 415 VAC
• Earth Leakage Sensitivity: Refer to Micrologic Vigi 4.1 datasheet for specific settings.

Applications & compatibility

This circuit breaker is designed for use in distribution switchboards and motor control centers across various industries, including manufacturing, food and beverage processing, and water treatment. It provides essential protection for circuits in packaging machinery, conveyor systems, and pump controls, ensuring operational continuity and equipment safety.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV426778 or contact our technical team for cross-reference assistance with compatible NSXm components.
