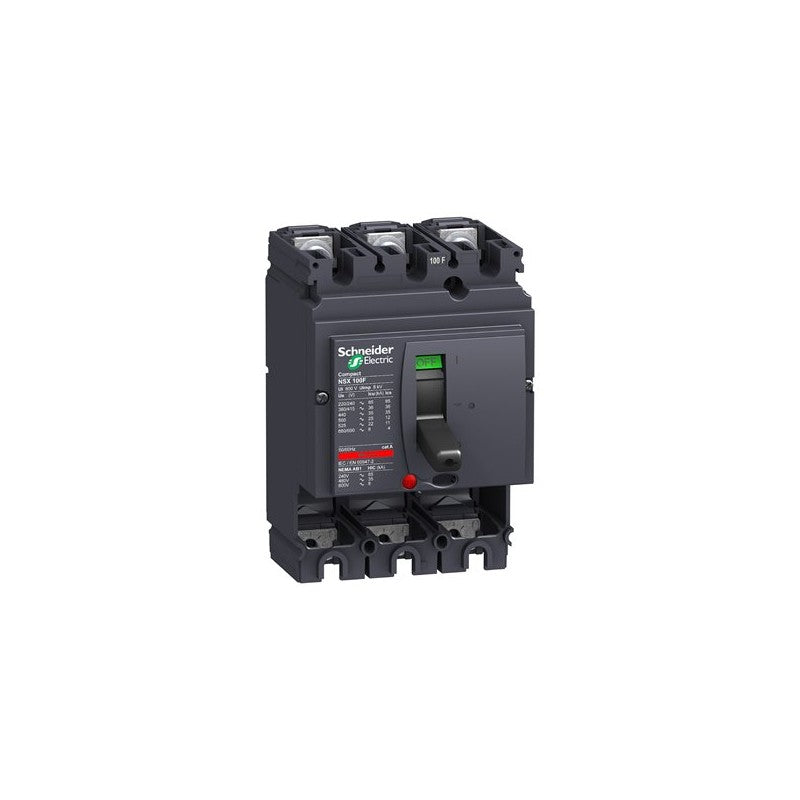

The Schneider Electric Compact NSX100F is a basic frame circuit breaker designed for robust electrical protection in industrial environments. This 3-pole unit serves as the foundation for a complete circuit breaker assembly, requiring a separate trip unit for full functionality. It is engineered to handle significant fault currents, making it suitable for applications demanding reliable overcurrent and short-circuit protection.

Technical details

• Series: Compact NSX
• Frame Size: NSX100F
• Number of Poles: 3
• Rated Current: 100 A
• Interrupting Capacity: 36 kA at 415 VAC
• Frequency Rating: 50/60 Hz
• Configuration: Basic frame, requires separate trip unit
• Voltage Compatibility: Suitable for 415 VAC systems

Applications & compatibility

This basic frame is integral to Schneider Electric's NSX range, commonly deployed in motor control centers, power distribution panels, and machinery control systems. It is compatible with various NSX trip units, allowing for customization of protection settings to meet specific application requirements in sectors such as manufacturing, food processing, and water treatment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429003 or contact our technical team for cross-reference assistance with compatible NSX components.
