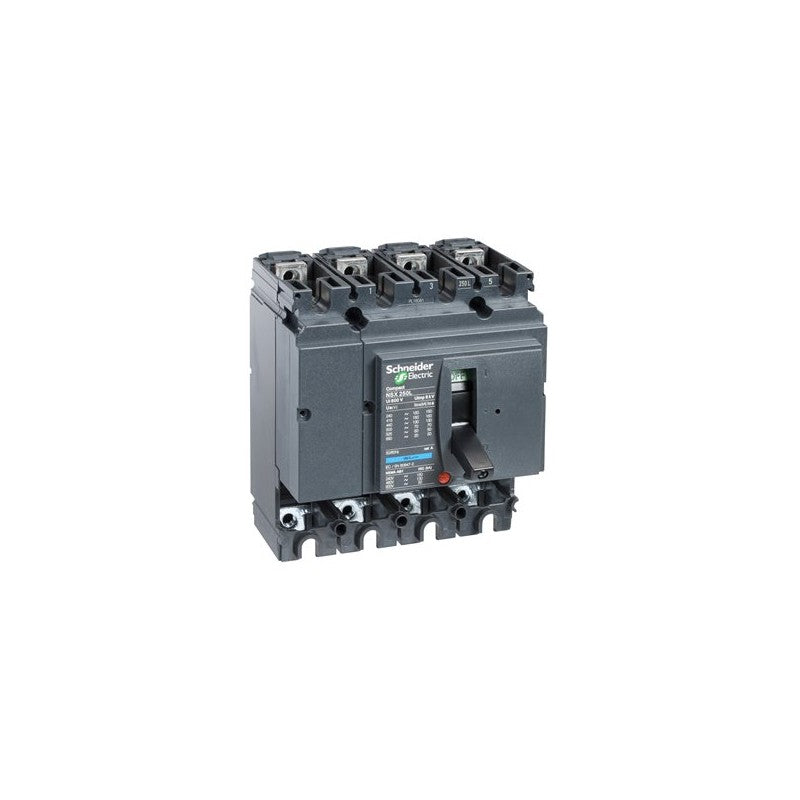

The Schneider Electric Compact NSX100L is a basic frame circuit breaker designed for robust electrical protection in industrial environments. This 4-pole unit is engineered to handle significant fault currents, making it suitable for applications requiring high interrupting capacity. It serves as a foundational component for building complete circuit breakers within the NSX series.

Technical details

• Series: Compact NSX
• Model Designation: NSX100L
• Number of Poles: 4
• Interrupting Capacity: 150 kA at 415 VAC 50/60 Hz
• Rated Current: 100 A
• Configuration: Basic frame, supplied without a trip unit
• Voltage Compatibility: Suitable for 415 VAC systems operating at 50/60 Hz
• Frame Size: Designed for the NSX100 frame size

Applications & compatibility

This circuit breaker frame is commonly integrated into power distribution systems for manufacturing facilities, data centers, and commercial buildings. It is essential for protecting downstream equipment in applications such as motor control centers, main distribution panels, and large machinery requiring reliable overcurrent protection.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429010 or contact our technical team for cross-reference assistance with compatible Compact NSX trip units and accessories.
