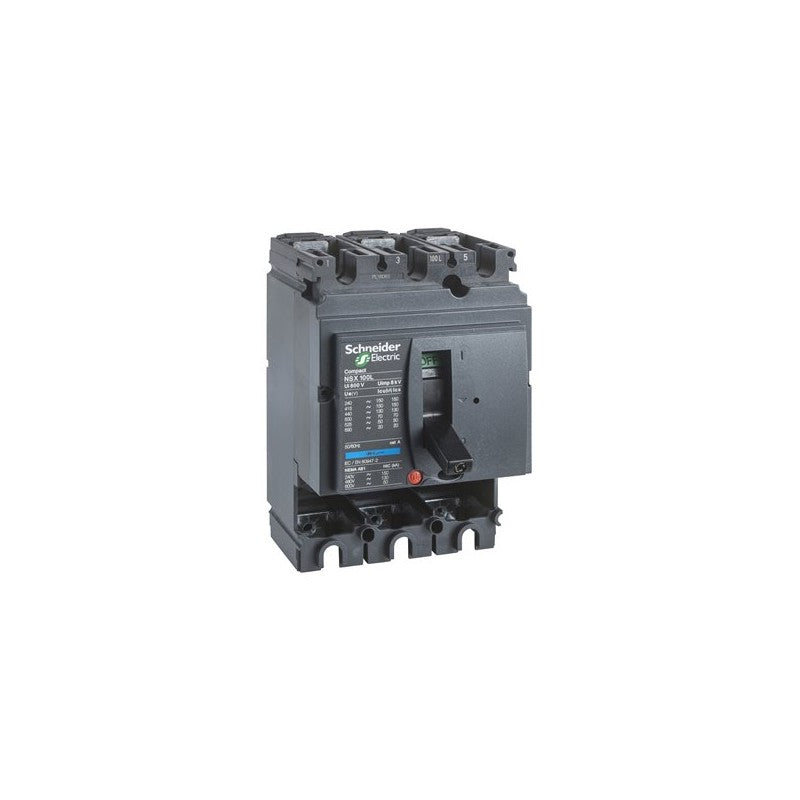

The Schneider Electric Compact NSX100S is a 3-pole basic frame circuit breaker designed for robust electrical protection in industrial environments. This unit is engineered to handle fault currents up to 100 kA at 415 VAC, 50/60 Hz, providing essential safety for power distribution systems. It serves as a foundational component for building complete circuit breakers by requiring the addition of a trip unit.

Technical details

• Series: Compact NSX
• Model Designation: NSX100S
• Number of Poles: 3
• Rated Breaking Capacity: 100 kA at 415 VAC, 50/60 Hz
• Current Rating: 100 A (requires trip unit for specific rating)
• Configuration: Basic frame, without trip unit
• Voltage Compatibility: 415 VAC, 50/60 Hz
• Frame Size: Suitable for applications requiring a 100A frame size

Applications & compatibility

This Schneider Electric Compact NSX100S basic frame is commonly integrated into main distribution panels, motor control centers, and sub-distribution boards within manufacturing facilities. It is a critical component for protecting electrical circuits in applications such as conveyor systems, pump controls, and HVAC units where reliable fault interruption is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429018 or contact our technical team for cross-reference assistance with compatible Compact NSX trip units and accessories.
