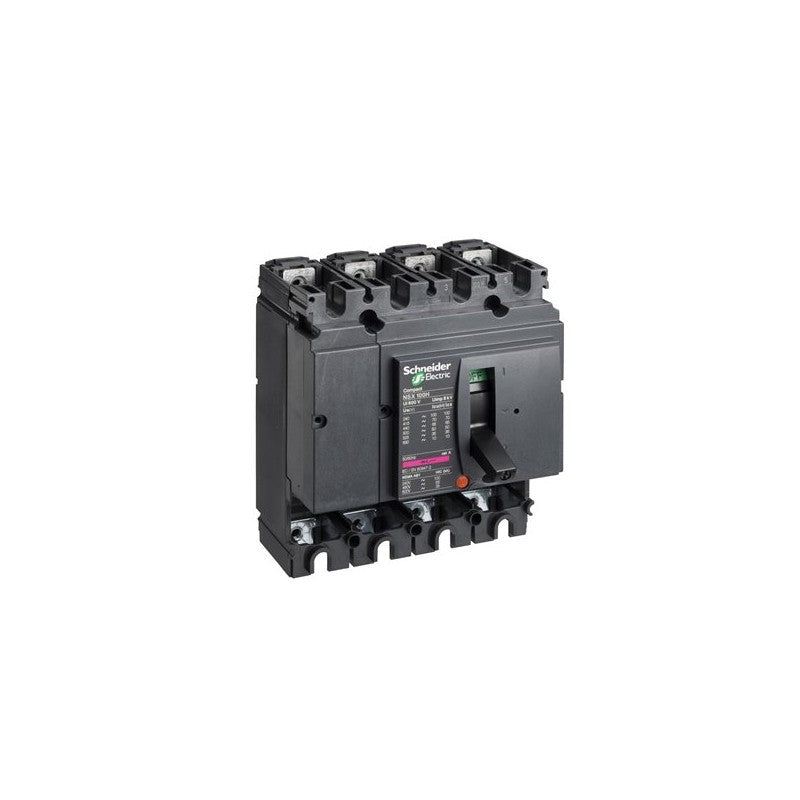

The Schneider Electric Compact NSX100S is a basic frame circuit breaker designed for robust electrical protection in industrial environments. This 4-pole unit is part of the widely recognized Compact NSX series, known for its reliability and modular design. It is engineered to provide a high interrupting capacity, ensuring safety and operational continuity for critical power distribution systems.

Technical details

• Series: Compact NSX
• Basic Frame Type: NSX100S
• Number of Poles: 4
• Interrupting Capacity: 100 kA at 415 VAC
• Frequency Rating: 50/60 Hz
• Current Rating: 100 A
• Trip Unit: Not included (requires separate purchase)
• Voltage Compatibility: Suitable for 415 VAC systems

Applications & compatibility

This circuit breaker frame is commonly specified for use in main distribution panels, motor control centers, and sub-distribution boards within manufacturing facilities. It is an integral component for protecting circuits in applications such as conveyor systems, pump controls, and HVAC units where reliable overcurrent protection is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429019 or contact our technical team for cross-reference assistance with compatible Compact NSX trip units and accessories.
