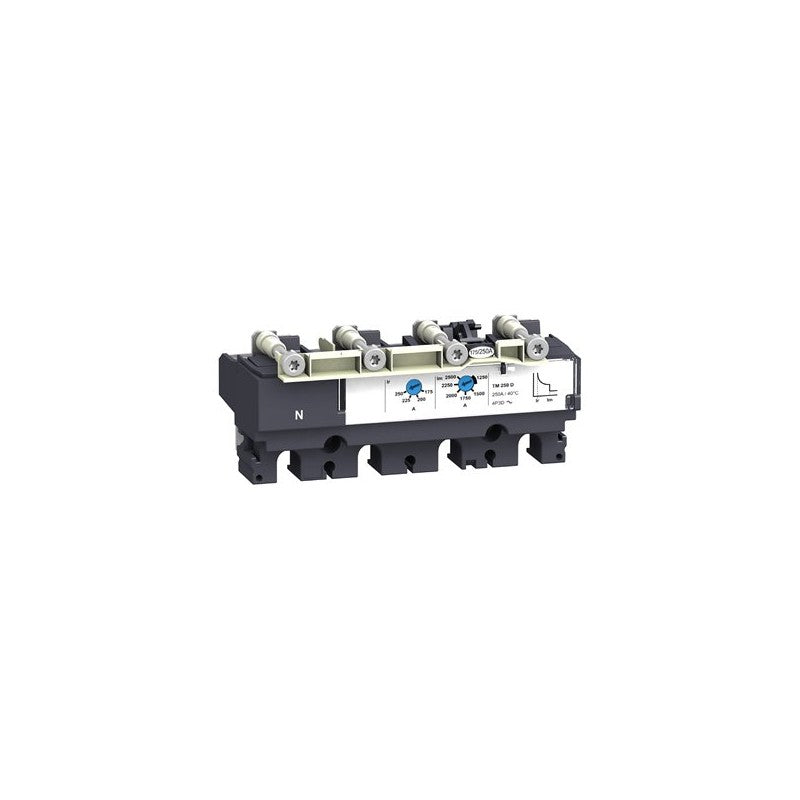

The Schneider Electric LV429046 is a thermal magnetic trip unit designed for use with the Compact NSX 100 series circuit breakers. This specific unit, designated TM25D, provides overcurrent protection for 4-pole configurations. Its 25 Ampere rating makes it suitable for applications requiring precise current monitoring and interruption.

Technical details

• Series: Compact NSX 100
• Trip Unit Type: TM25D
• Protection Type: Thermal Magnetic
• Current Rating: 25 A
• Number of Poles: 4
• Functionality: Provides adjustable thermal overload and instantaneous magnetic short-circuit protection.
• Compatibility: Designed for integration with Schneider Electric Compact NSX 100 frame circuit breakers.
• Voltage Class: For specific voltage ratings, please consult the manufacturer's datasheet for the Compact NSX 100 breaker frame.

Applications & compatibility

This trip unit is integral to the protection schemes of various industrial electrical distribution systems. It is commonly found in motor control centers, power distribution panels, and machinery requiring reliable circuit protection. Its 4-pole configuration ensures complete isolation for all conductors in a circuit.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429046 or contact our technical team for cross-reference assistance with compatible Compact NSX 100 components.
