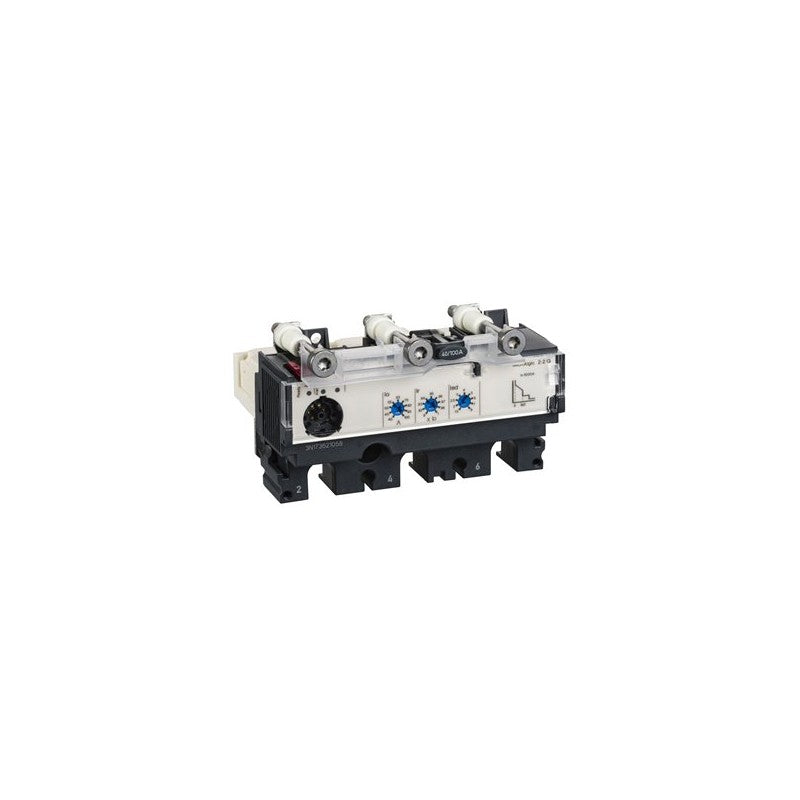

The Schneider Electric LV429076 is a Micrologic 2.2 G electronic trip unit designed for use with Compact NSX 100, 160, and 250 series circuit breakers. This trip unit provides advanced protection and control capabilities for electrical distribution systems. It is engineered to deliver precise current monitoring and tripping functions, ensuring the safety and reliability of connected equipment.

Technical details

• Trip Unit Type: Electronic Micrologic 2.2 G
• Current Rating: 40 A
• Number of Poles: 3
• Pole Configuration: 3d (likely indicating 3 normally open and 3 normally closed contacts, or a specific contact arrangement for signaling)
• Compatible Circuit Breaker Series: Schneider Electric Compact NSX 100, NSX 160, NSX 250
• Protection Functions: Overload, short-circuit (specific parameters to be confirmed via datasheet)
• Control Functions: Local and remote control capabilities (specifics to be confirmed via datasheet)
• Mounting Type: Designed for integration within Compact NSX circuit breaker frames

Applications & compatibility

This trip unit is integral to the protection schemes of industrial electrical panels and distribution boards. It is commonly found in applications requiring robust overcurrent and short-circuit protection, such as in manufacturing facilities, data centers, and commercial buildings. Its compatibility with the Schneider Electric Compact NSX platform ensures seamless integration into existing or new installations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429076 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
