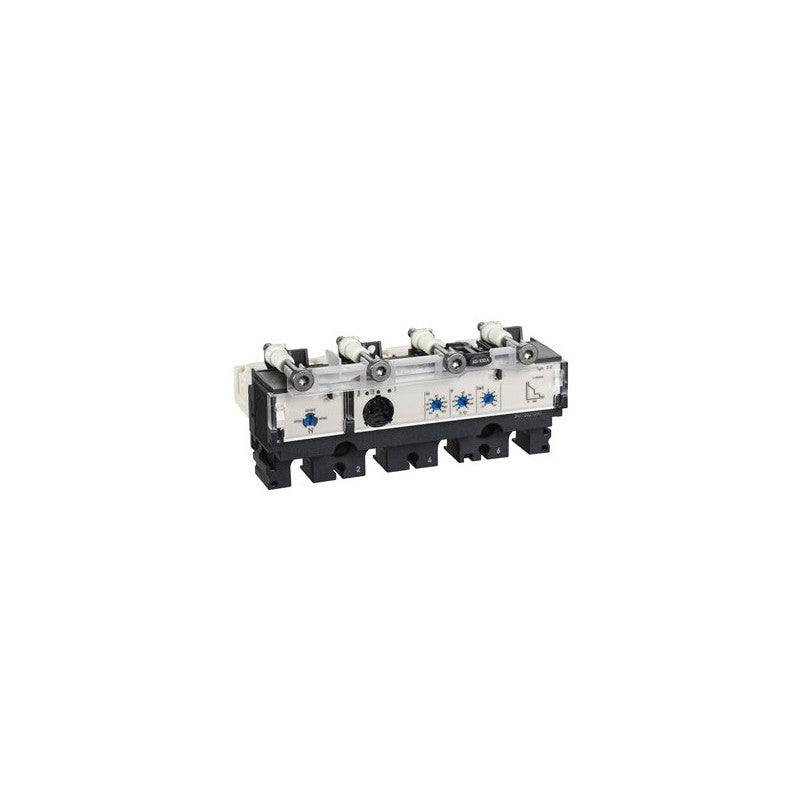

The Schneider Electric Micrologic 2.2 trip unit is an electronic control module designed for Compact NSX 100, 160, and 250 series circuit breakers. This specific unit is configured for 4-pole applications and features a 100A rating, providing essential protection and control for electrical distribution systems. It is commonly integrated into power distribution panels and motor control centers within industrial facilities.

Technical details

• Series: Micrologic 2.2
• Type: Electronic Trip Unit
• Compatible Circuit Breaker Series: Compact NSX 100, NSX 160, NSX 250
• Number of Poles: 4
• Current Rating: 100A
• Protection Functions: Long-time pickup, short-time pickup, instantaneous pickup, ground fault pickup (specific settings require further configuration or datasheet reference)
• Control Interface: Electronic

Applications & compatibility

This Micrologic 2.2 trip unit is engineered for use in demanding industrial environments, including manufacturing plants, data centers, and commercial buildings. It is suitable for protecting circuits in applications such as motor control, power distribution, and branch circuit protection where precise and adjustable tripping characteristics are required.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429080 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
