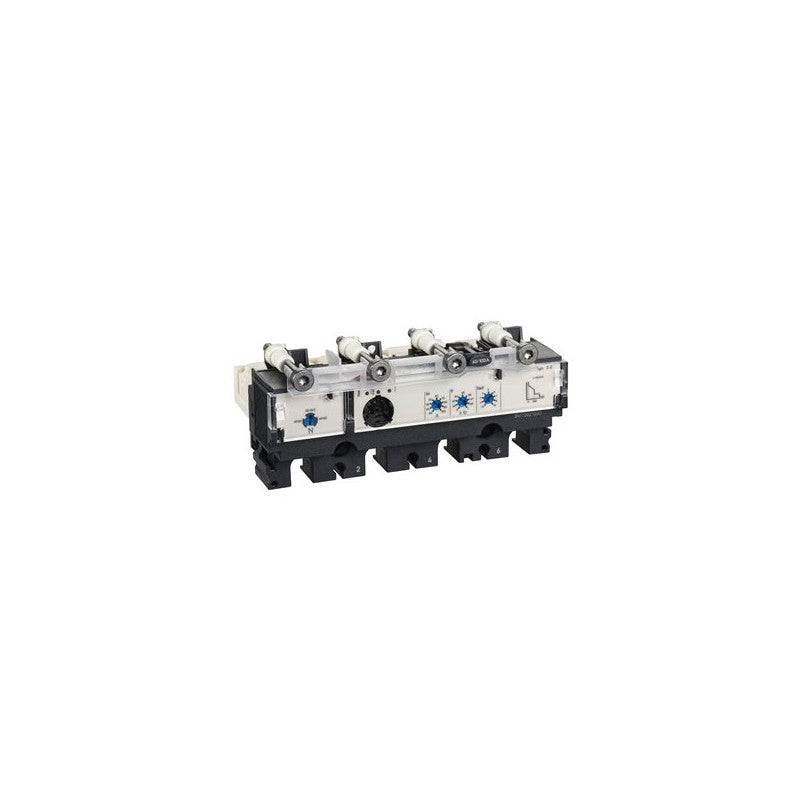

The Schneider Electric Micrologic 2.2 trip unit is an electronic control module designed for Compact NSX 100, 160, and 250 series circuit breakers. This specific unit is rated for 40A and features a 4-pole configuration (4d), providing comprehensive protection for electrical circuits in demanding industrial environments. It integrates advanced trip unit functionality within the established NSX breaker platform.

Technical details

• Trip Unit Type: Electronic Micrologic 2.2
• Compatible Circuit Breaker Series: Schneider Electric Compact NSX 100, NSX 160, NSX 250
• Current Rating: 40 Amperes (A)
• Number of Poles: 4-pole (4d)
• Protection Functions: Overload, short-circuit, ground fault (specific settings to be verified via datasheet)
• Control Type: Electronic trip unit
• Mounting Type: Designed for integration into Compact NSX circuit breaker frames

Applications & compatibility

This Micrologic 2.2 trip unit is essential for applications requiring precise and reliable circuit protection, commonly found in motor control centers, power distribution panels, and machinery control systems. Its compatibility with the Schneider Electric Compact NSX platform ensures seamless integration into existing electrical infrastructure for manufacturing plants, processing facilities, and building management systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429082 or contact our technical team for cross-reference assistance with compatible Micrologic trip units and NSX components.
