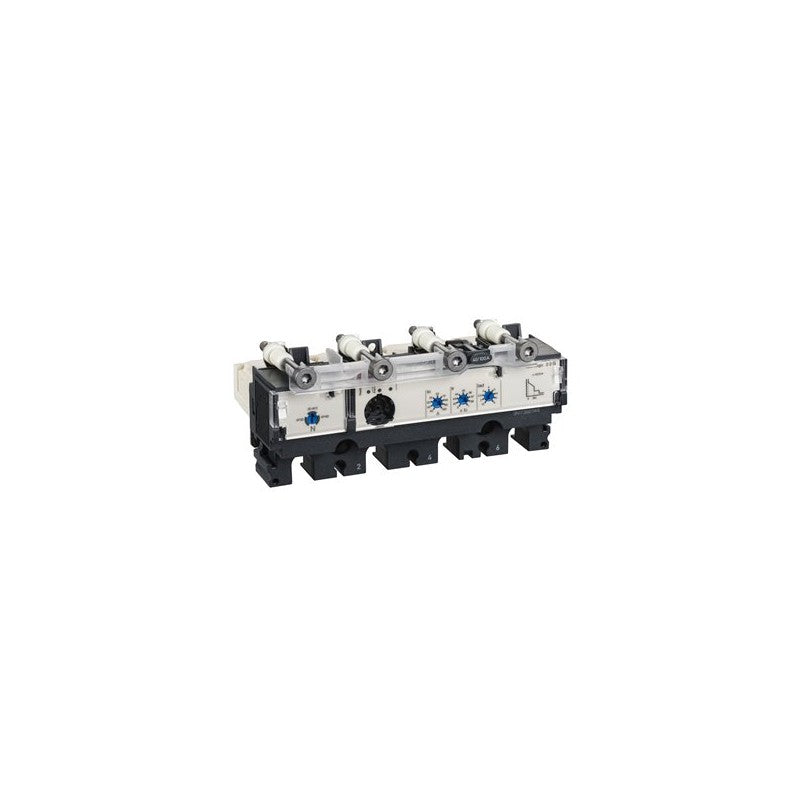

The Schneider Electric LV429085 is a Micrologic 2.2 G electronic trip unit designed for use with Compact NSX 100, 160, and 250 series circuit breakers. This specific unit is configured for 4-pole applications, providing comprehensive circuit protection for demanding industrial environments. Its advanced electronic tripping mechanism ensures precise and reliable fault detection.

Technical details

• Trip Unit Series: Micrologic 2.2 G
• Compatible Circuit Breaker Series: Schneider Electric Compact NSX 100, NSX 160, NSX 250
• Number of Poles: 4-pole (4d)
• Current Rating: 100 A
• Type: Electronic Trip Unit
• Protection Functions: Long-time pickup, short-time pickup, instantaneous pickup, ground fault pickup (specific settings require datasheet verification)
• Display: Integrated display for status and fault indication (specific features require datasheet verification)
• Mounting: Designed for integration within Compact NSX circuit breaker frames

Applications & compatibility

This trip unit is integral to the protection schemes of Schneider Electric Compact NSX circuit breakers, commonly found in power distribution panels for manufacturing facilities, data centers, and commercial buildings. It is suitable for applications requiring precise overcurrent and short-circuit protection, such as motor control circuits, lighting circuits, and general power distribution.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429085 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
