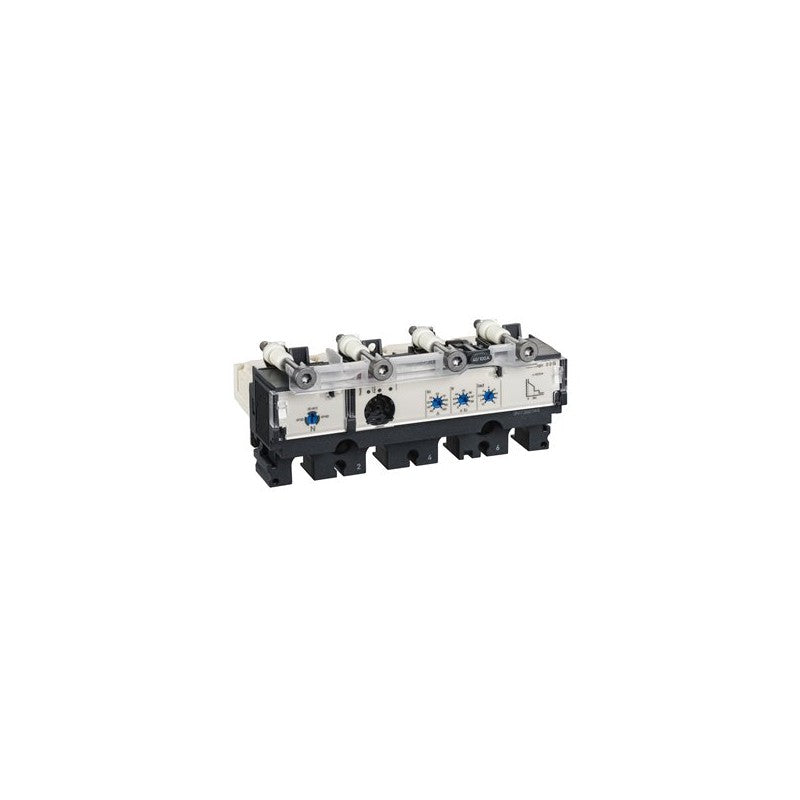

The Schneider Electric LV429086 is a Micrologic 2.2 G electronic trip unit designed for use with Compact NSX 100, 160, and 250 series circuit breakers. This trip unit provides advanced protection and control capabilities for electrical distribution systems. It is specifically engineered for applications requiring precise current monitoring and fault interruption.

Technical details

• Trip Unit Type: Micrologic 2.2 G
• Electronic Trip Unit
• Current Rating: 40 A
• Number of Poles: 4d (4 poles)
• Compatible Circuit Breaker Series: Compact NSX 100, Compact NSX 160, Compact NSX 250
• Protection Functions: Overload, short-circuit, ground fault (specific settings to be verified against manufacturer datasheet)
• Control Functions: Local and remote tripping capabilities (specifics to be verified against manufacturer datasheet)
• Display: Integrated display for status and settings (specifics to be verified against manufacturer datasheet)

Applications & compatibility

This trip unit is commonly integrated into electrical distribution panels and motor control centers within manufacturing facilities, data centers, and commercial buildings. Its compatibility with the Schneider Electric Compact NSX series makes it suitable for protecting circuits in applications such as conveyor systems, HVAC units, and process control equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429086 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
