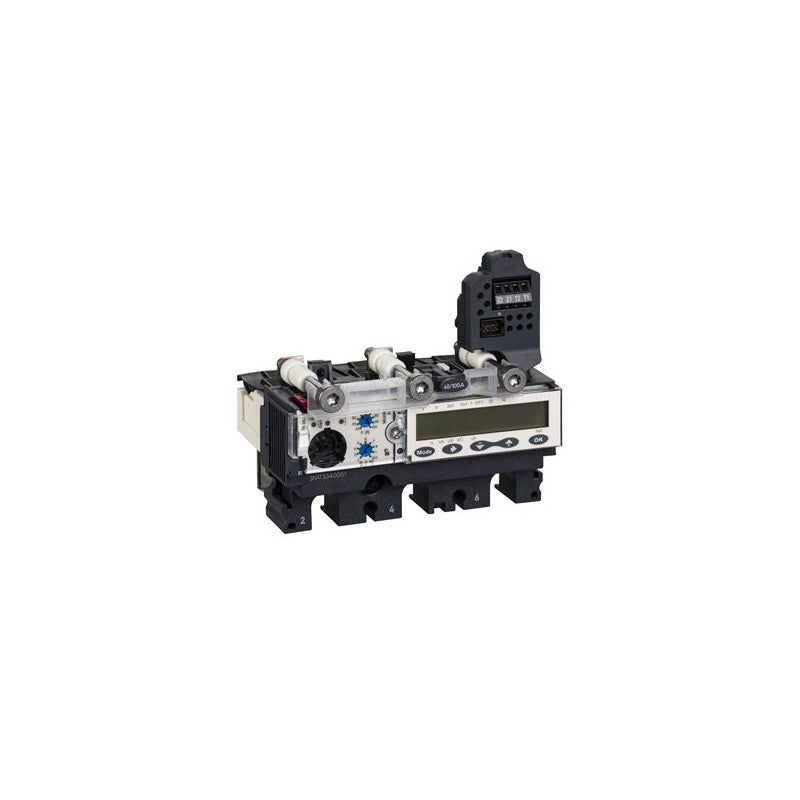

The Schneider Electric LV429111 is an electronic trip unit designed for the Compact NSX 100, 160, and 250 series circuit breakers. This Micrologic 6.2 A model provides advanced protection and control capabilities for electrical distribution systems. It is engineered to deliver precise tripping characteristics for a 40A rating across three poles.

Technical details

• Trip Unit Series: Micrologic 6.2 A
• Compatible Circuit Breaker Series: Compact NSX 100, NSX 160, NSX 250
• Type: Electronic Trip Unit
• Current Rating: 40 Amperes
• Number of Poles: 3
• Configuration: 3d (likely refers to 3 normally open auxiliary contacts and 3 normally closed auxiliary contacts, but verify with manufacturer datasheet)
• Protection Functions: Advanced electronic protection (specific functions like thermal, magnetic, ground fault, etc., should be confirmed via datasheet)

Applications & compatibility

This trip unit is integral to the protection schemes of industrial electrical panels and distribution boards. It is commonly found in applications requiring reliable overcurrent and short-circuit protection for machinery and circuits within manufacturing facilities, data centers, and commercial buildings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429111 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
