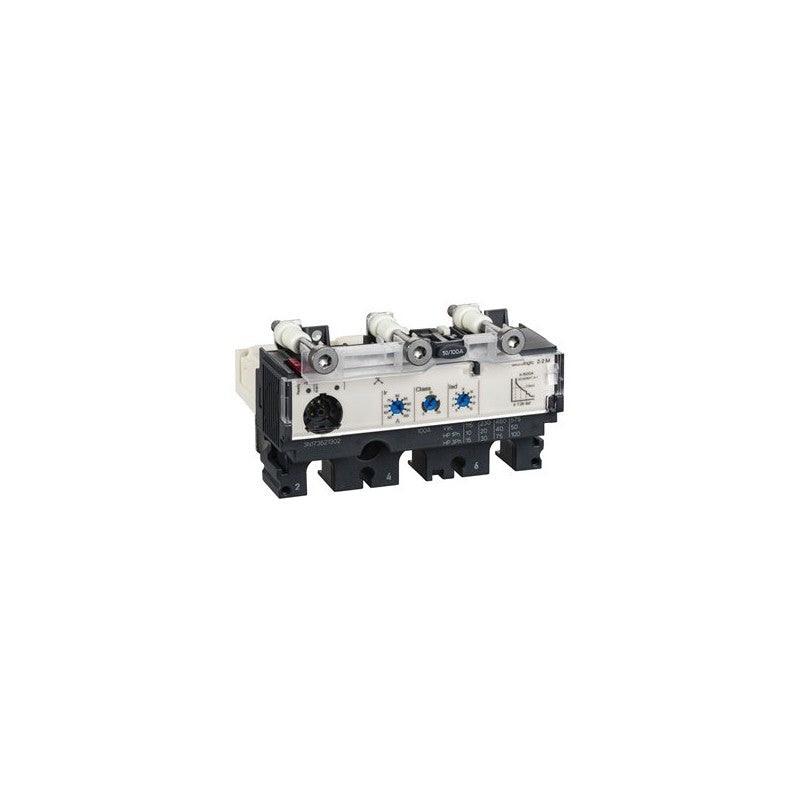

The Schneider Electric Micrologic 2.2 M trip unit is designed for use with the Compact NSX 100, 160, and 250 series circuit breakers. This electronic trip unit provides advanced protection and control capabilities for electrical distribution systems. It is engineered to ensure reliable operation and safety in demanding industrial environments.

Technical details

• Trip Unit Type: Micrologic 2.2 M
• Electronic Protection: Yes
• Rated Current: 100 A
• Number of Poles: 3
• Pole Configuration: 3d (3 normally open, 3 normally closed contacts)
• Compatible Circuit Breaker Series: Schneider Electric Compact NSX 100, NSX 160, NSX 250
• Protection Functions: Overload, short-circuit, ground-fault (specific settings to be verified against manufacturer datasheet)
• Control Interface: Electronic

Applications & compatibility

This trip unit is essential for protecting electrical circuits in a wide range of industrial applications, including manufacturing plants, data centers, and commercial buildings. It is compatible with Schneider Electric's Compact NSX molded case circuit breaker frames, ensuring seamless integration into existing electrical infrastructure for reliable power management.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429170 or contact our technical team for cross-reference assistance with compatible Micrologic trip units and Compact NSX components.
