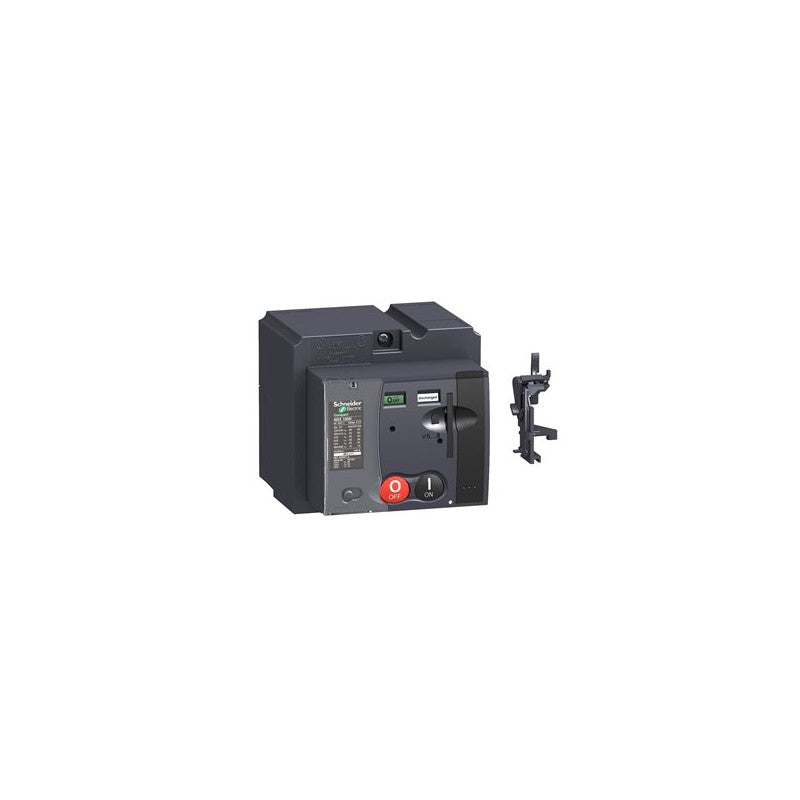

This Schneider Electric motor mechanism, designated for use with Compact NSX100/160 and PowerPact Multistandard H circuit breakers, operates within a voltage range of 48 VAC to 60 VAC at 50/60 Hz. It serves as a crucial component for automated switching operations in electrical distribution systems.

Technical details

• Series/Family: Compact NSX100/160, PowerPact Multistandard H
• Motor Mechanism Type: MT 100/160
• Operating Voltage: 48 VAC to 60 VAC
• Frequency: 50/60 Hz
• Functionality: Provides remote electrical operation for compatible circuit breakers, enabling automated opening and closing of contacts.
• Compatibility: Designed for integration with Schneider Electric Compact NSX100/160 and PowerPact Multistandard H frame circuit breakers.
• Control Power: Requires a dedicated control power source within the specified voltage range.

Applications & compatibility

This motor mechanism is integral to automated control systems found in various industrial settings, including motor control centers, power distribution panels, and building management systems. Its compatibility with Schneider Electric's NSX and PowerPact breaker families ensures seamless integration into existing infrastructure for applications requiring remote switching capabilities.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429440 or contact our technical team for cross-reference assistance with compatible Schneider Electric motor mechanisms.
