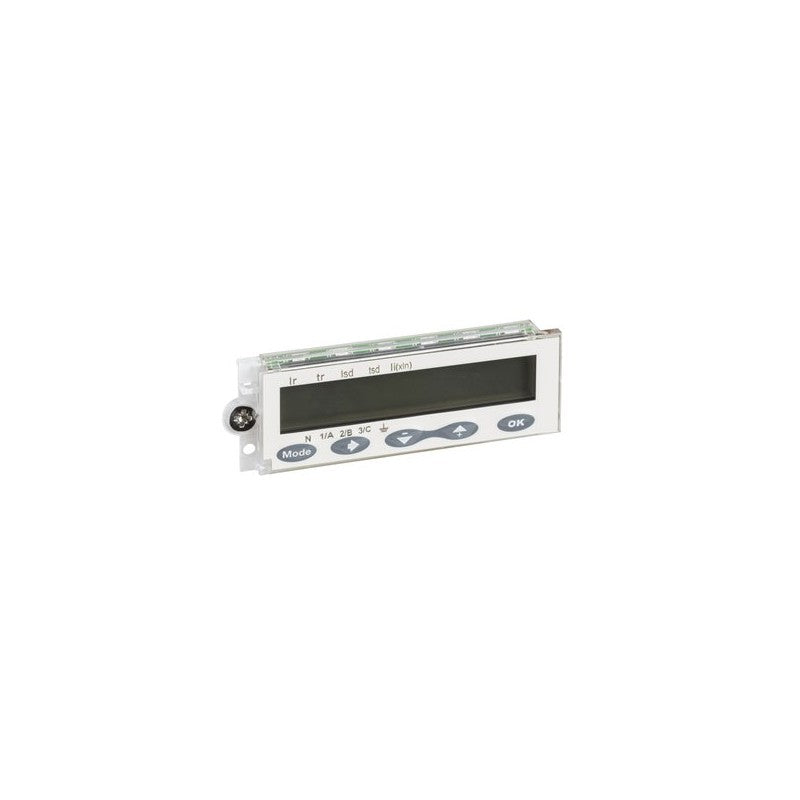

This Schneider Electric LCD display module is designed as a spare part for the Micrologic 5 trip unit, commonly integrated into Compact NSX100 to 630 circuit breakers. It provides essential visual feedback for trip unit status and settings, crucial for monitoring and managing electrical distribution systems. The module facilitates quick diagnostics and operational adjustments directly at the breaker panel.

Technical details

• Product Type: LCD Display Module
• Manufacturer Series: Micrologic 5
• Compatible Circuit Breaker Series: Compact NSX100 to NSX630
• Functionality: Displays trip unit status, settings, and diagnostic information.
• Form Factor: Designed as a direct replacement module for the specified trip units.
• Power Source: Typically powered by the associated trip unit or circuit breaker control circuit. (Buyer to verify specific voltage requirements against manufacturer datasheet).
• Communication Interface: Integral to the Micrologic 5 trip unit's internal communication bus.
• Display Type: Liquid Crystal Display (LCD) for clear readability.

Applications & compatibility

This LCD display module is specifically engineered for use within Schneider Electric's Compact NSX series of molded case circuit breakers. It is vital for applications requiring detailed monitoring and control of electrical protection parameters in commercial buildings, industrial facilities, and data centers. Its compatibility ensures seamless integration with existing Micrologic 5 trip units, maintaining the integrity of the protection system.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429483 or contact our technical team for cross-reference assistance with compatible Micrologic 5 trip unit components.
