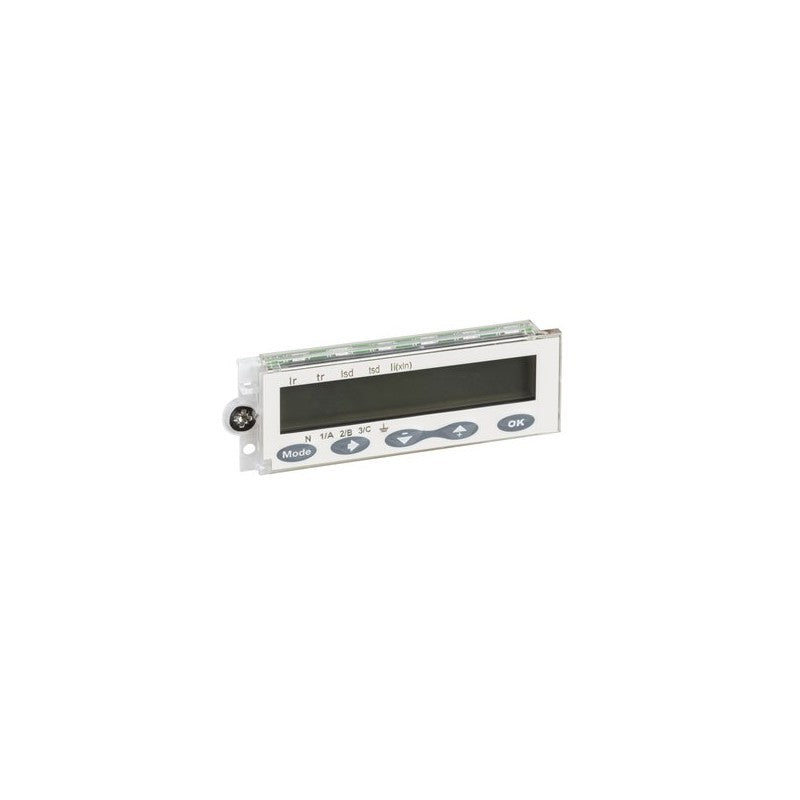

This Schneider Electric LCD display module is designed as a spare part for the Micrologic 6 trip unit, specifically for use with Compact NSX100 to NSX630 circuit breakers. It provides essential visual feedback for the trip unit's operational status and settings, facilitating efficient monitoring and troubleshooting within electrical distribution systems.

Technical details

• Product Type: LCD Display Module
• Manufacturer Series: Micrologic 6 Trip Unit
• Compatible Breaker Series: Schneider Electric Compact NSX100 to NSX630
• Functionality: Displays trip unit status, settings, and fault information
• Interface: Connects directly to the Micrologic 6 trip unit
• Power Source: Typically powered by the trip unit itself (verify with manufacturer datasheet)
• Environmental Rating: Designed for industrial environments (verify with manufacturer datasheet)
• Dimensions: Specific dimensions are not encoded in the part number; refer to manufacturer datasheet for precise measurements.

Applications & compatibility

This LCD display module is critical for applications requiring detailed monitoring of circuit breaker protection functions. It is commonly found in industrial facilities, commercial buildings, and data centers utilizing Schneider Electric Compact NSX circuit breakers for power distribution and protection in applications such as motor control centers, main distribution panels, and branch circuit protection.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429484 or contact our technical team for cross-reference assistance with compatible Micrologic 6 trip unit components.
