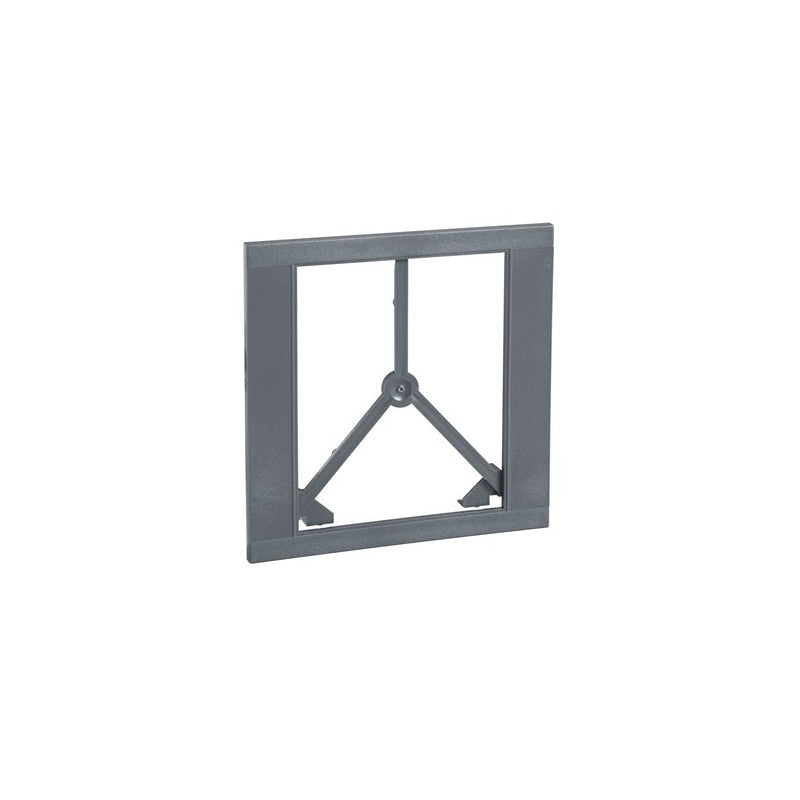

This Schneider Electric front panel escutcheon is designed for the Compact NSX 100, 160, and 250 series circuit breakers. It provides IP30 protection for the control unit and is compatible with all control types within these breaker families. This component is essential for maintaining the integrity and safety of the breaker's control interface in various industrial environments.

Technical details

• Series Compatibility: Compact NSX 100, NSX 160, NSX 250
• Product Type: Front Panel Escutcheon
• Ingress Protection Rating: IP30
• Control Type Compatibility: Suitable for all control types
• Material: Durable construction for industrial applications
• Mounting: Designed for secure attachment to the specified NSX breaker frames
• Function: Protects the control unit and associated wiring from dust and accidental contact

Applications & compatibility

This escutcheon is commonly found protecting the control interfaces of Schneider Electric Compact NSX circuit breakers installed in control panels for manufacturing equipment, power distribution systems, and building automation. Its IP30 rating makes it suitable for environments where protection against solid objects larger than 1mm is required, but not against water ingress.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429525 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
