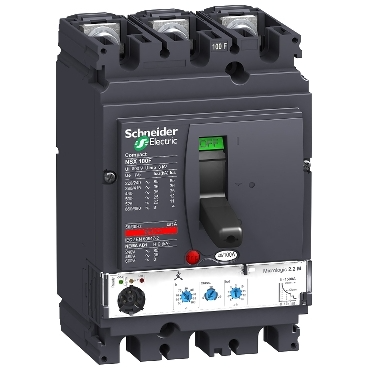

The Schneider Electric Compact NSX100F circuit breaker is a 3-pole device designed for robust electrical protection in industrial environments. Featuring the Micrologic 2.2 electronic trip unit, this breaker offers precise current sensing and control capabilities. It is engineered for applications requiring reliable circuit interruption and fault management.

Technical details

• Series: Compact NSX
• Model: NSX100F
• Trip Unit: Micrologic 2.2
• Poles: 3
• Current Rating: 40 A
• Frame Size: 100 A
• Breaking Capacity: F (standard breaking capacity)
• Voltage Rating: Verify against manufacturer datasheet for specific voltage class (e.g., 240V, 480V, 600V AC).

Applications & compatibility

This Schneider Electric circuit breaker is suitable for use in motor control centers, power distribution panels, and machinery control systems across various industries. It is commonly found in applications such as manufacturing automation, material handling, and process control where reliable overcurrent and short-circuit protection is essential.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429772 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
