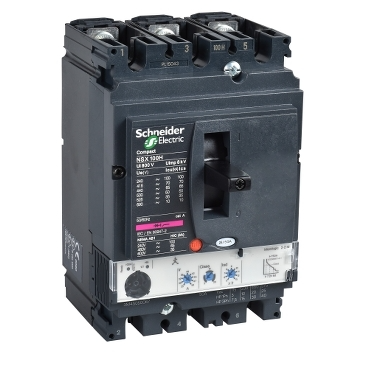

The Schneider Electric ComPact NSX100H circuit breaker is engineered for robust protection in demanding industrial environments. This 3-pole unit features a 40A MicroLogic 2.2 trip unit and offers a significant interrupting capacity of 70 kA at 415 VAC, making it suitable for applications requiring high fault current withstand capabilities.

Technical details

• Series: ComPact NSX
• Model Designation: NSX100H
• Number of Poles: 3
• Rated Current: 40 A (via MicroLogic 2.2 trip unit)
• Interrupting Capacity: 70 kA at 415 VAC
• Trip Unit Type: MicroLogic 2.2
• Voltage Rating: Designed for systems up to 415 VAC
• Configuration: 3d (refer to manufacturer datasheet for specific configuration details)

Applications & compatibility

This circuit breaker is commonly deployed in power distribution systems for manufacturing facilities, data centers, and commercial buildings. It provides essential overcurrent and short-circuit protection for electrical panels, motor control centers, and critical equipment on assembly lines, packaging machinery, and material handling systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429792 or contact our technical team for cross-reference assistance with compatible ComPact NSX components.
