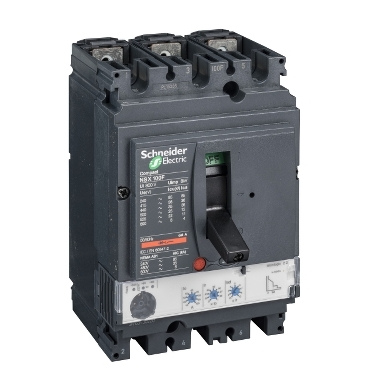

The Schneider Electric Compact NSX100N circuit breaker is engineered for robust electrical protection in demanding industrial environments. As part of the NSX series, this 3-pole breaker is designed to safeguard equipment against overcurrents and short circuits, ensuring operational continuity. Its Micrologic 2.2 trip unit provides advanced protection settings for critical machinery.

Technical details

• Series: Compact NSX
• Model: NSX100N
• Number of Poles: 3
• Rated Current: 100 A
• Trip Unit: Micrologic 2.2
• Interrupting Capacity: 50 kA at 415 VAC
• Form Factor: Molded Case Circuit Breaker (MCCB)
• Protection Functions: Overload, Short Circuit

Applications & compatibility

This circuit breaker is commonly deployed in motor control centers, power distribution panels, and as a protective device for individual machinery on production lines. It is suitable for applications requiring reliable circuit protection in sectors such as manufacturing, food and beverage processing, and material handling.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429795 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
