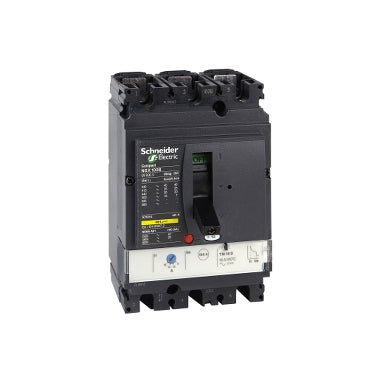

The Schneider Electric Compact NSX100N circuit breaker is engineered for robust electrical protection in demanding industrial environments. As a key component within the NSX series, this 3-pole breaker offers a significant interrupting capacity, making it suitable for applications requiring reliable fault current limitation. Its design focuses on providing essential safety and operational continuity for electrical distribution systems.

Technical details

• Series: Compact NSX
• Model Designation: NSX100N
• Number of Poles: 3
• Interrupting Capacity: 50 kA at 415 VAC
• Trip Unit Type: TMD
• Current Rating: 16 A
• Voltage Rating: Up to 415 VAC
• Configuration: 3d (3 normally open, 3 normally closed auxiliary contacts)

Applications & compatibility

This circuit breaker is commonly deployed in motor control centers, power distribution panels, and machinery control systems across various industries. It is designed to protect circuits in applications such as manufacturing lines, material handling equipment, and process control systems where precise and dependable overcurrent protection is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV429847 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
