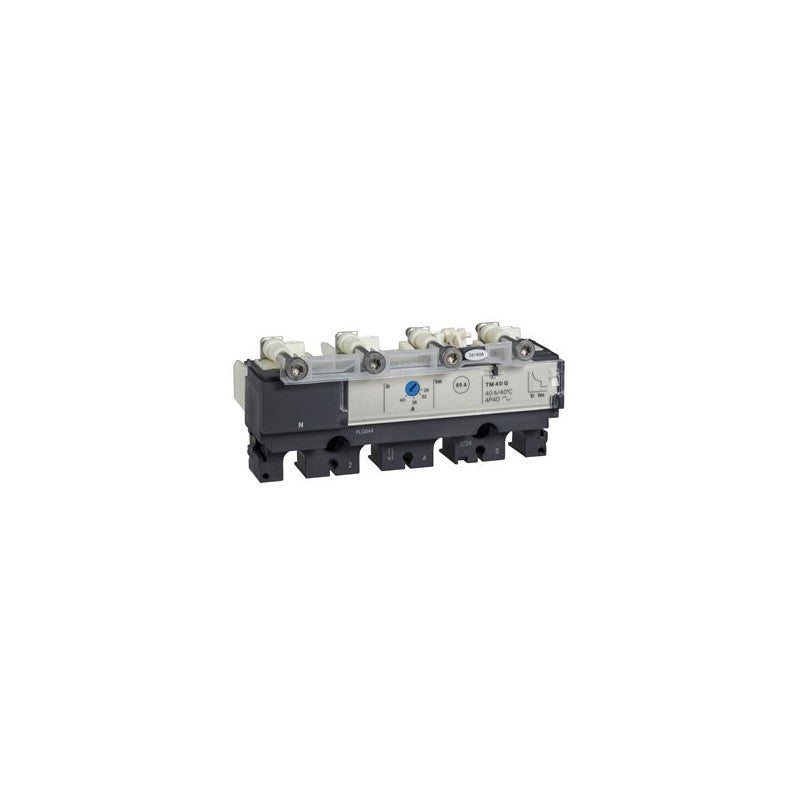

The Schneider Electric LV430092 is a TM80G thermal magnetic trip unit designed for use with Compact NSX 100, 160, and 250 series circuit breakers. This trip unit provides essential overcurrent protection for electrical distribution systems. It is specifically engineered for 4-pole applications, offering comprehensive protection across all phases and the neutral conductor.

Technical details

• Series: Compact NSX
• Trip Unit Type: TM80G Thermal Magnetic
• Current Rating: 80 A
• Number of Poles: 4 Pole (4d)
• Compatible Circuit Breaker Series: NSX 100, NSX 160, NSX 250
• Protection Functionality: Overload and Short-Circuit Protection
• Trip Unit Technology: Thermal-Magnetic

Applications & compatibility

This trip unit is integral to the protection schemes of various industrial electrical distribution panels and motor control centers. It is commonly found in applications requiring robust protection for circuits feeding machinery such as pumps, fans, conveyors, and processing equipment within manufacturing facilities, water treatment plants, and building services.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV430092 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
