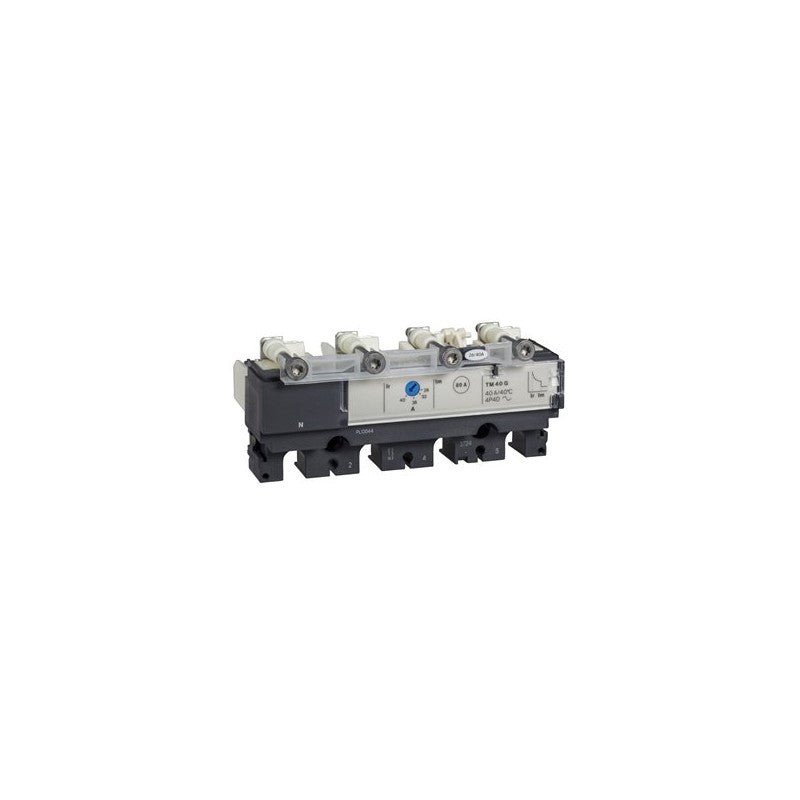

The Schneider Electric LV430097 is a TM250G trip unit designed for use with Compact NSX 250 circuit breakers. This thermal magnetic trip unit provides overcurrent protection for 4-pole circuit breakers, ensuring operational safety in electrical distribution systems.

Technical details

• Series: Compact NSX 250
• Trip Unit Type: TM250G
• Protection Type: Thermal Magnetic
• Current Rating: 250 A
• Number of Poles: 4 (4d)
• Compatible Circuit Breaker Series: Compact NSX 250
• Functionality: Overcurrent and short-circuit protection

Applications & compatibility

This trip unit is specifically engineered for Schneider Electric's Compact NSX 250 series circuit breakers, commonly found in industrial power distribution panels, motor control centers, and building electrical systems. Its 4-pole configuration makes it suitable for applications requiring protection on all live conductors and neutral.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV430097 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
