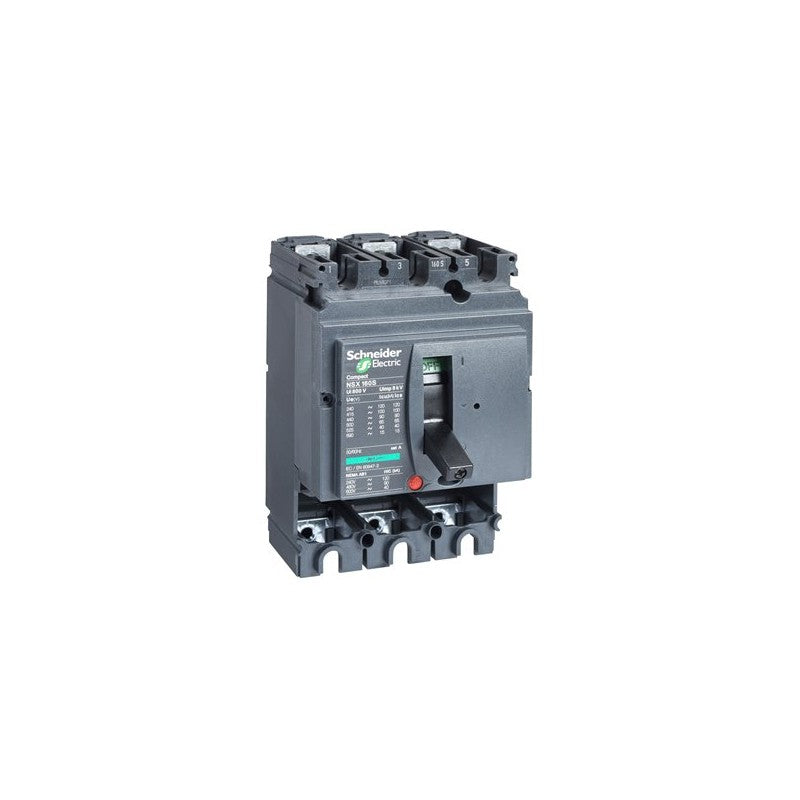

Designed for robust circuit protection in demanding industrial environments, the Schneider Electric Compact NSX160S is a fundamental component for electrical distribution systems. This basic frame circuit breaker is engineered to provide reliable interruption capabilities, forming the core of a complete circuit breaker assembly. It is commonly integrated into control panels and power distribution units for machinery and facility power management.

Technical details

• Series: Compact NSX
• Model Designation: NSX160S
• Number of Poles: 3
• Interrupting Capacity: 100 kA at 415 VAC 50/60 Hz
• Current Rating: 160 A
• Frame Size: 160 A
• Trip Unit Compatibility: Designed to accept a separate trip unit (trip unit not included)
• Construction: Basic frame, requiring additional components for full functionality

Applications & compatibility

This circuit breaker frame is suitable for use in a wide range of industrial applications including motor control centers, power distribution boards, and as a protective device for transformers and cables. Its 160A rating and high interrupting capacity make it ideal for applications requiring robust short-circuit protection in sectors such as manufacturing, food and beverage processing, and water treatment facilities.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV430391 or contact our technical team for cross-reference assistance with compatible Compact NSX trip units and accessories.
