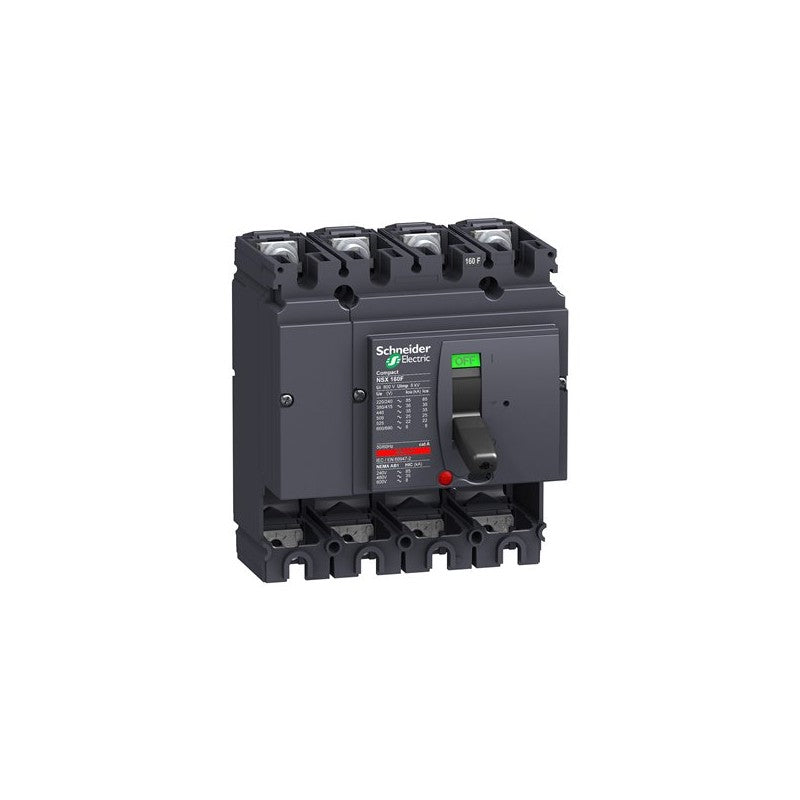

The Schneider Electric Compact NSX160F is a basic frame circuit breaker designed for robust electrical protection in industrial environments. This 4-pole unit is part of the widely recognized Compact NSX series, known for its reliability and modular design. It serves as a foundational component for building complete circuit breakers, requiring the addition of a trip unit for full functionality.

Technical details

• Series: Compact NSX
• Model: NSX160F Basic Frame
• Poles: 4
• Interrupting Capacity: 36 kA at 415 VAC 50/60 Hz
• Current Rating (Frame Size): 160 A
• Configuration: Supplied without a trip unit, allowing for customizable protection settings.
• Voltage Compatibility: Rated for 415 VAC at 50/60 Hz frequency.
• Construction: Basic frame assembly, requiring additional components for a complete circuit breaker solution.

Applications & compatibility

This Schneider Electric basic frame is integral to the assembly of circuit breakers used in a variety of industrial power distribution systems. It is commonly found in control panels, motor control centers, and power distribution boards for applications such as manufacturing plants, data centers, and commercial buildings where reliable overcurrent protection is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV430408 or contact our technical team for cross-reference assistance with compatible Compact NSX trip units and accessories.
