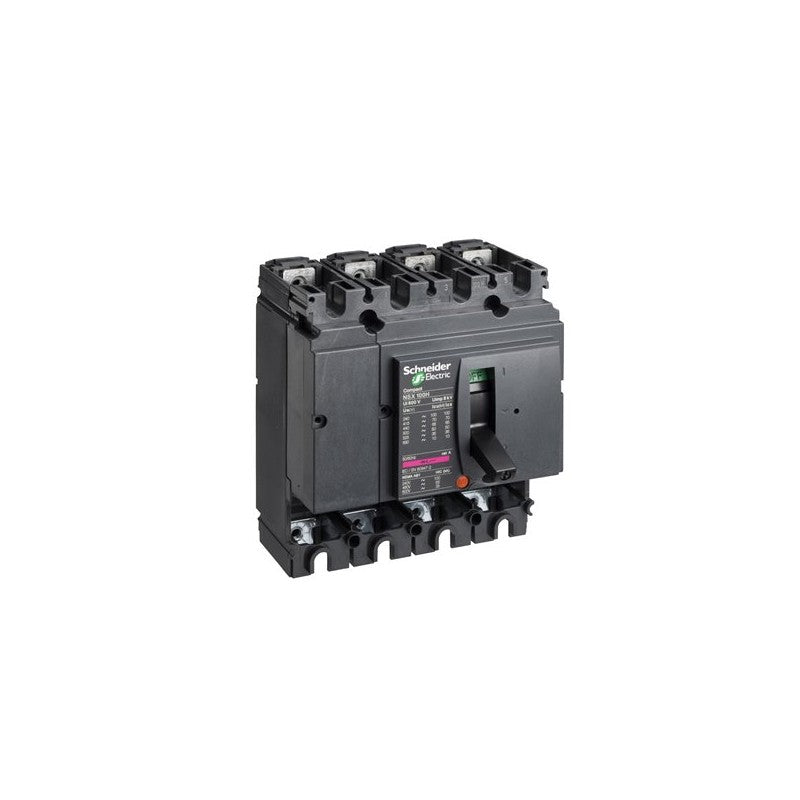

The Schneider Electric Compact NSX160H is a basic frame circuit breaker designed for robust electrical protection in demanding industrial environments. This 4-pole unit is engineered to handle significant fault currents, making it suitable for applications requiring high levels of safety and reliability. It serves as a foundational component within larger power distribution systems, offering essential circuit interruption capabilities.

Technical details

• Series: Compact NSX
• Model: NSX160H
• Number of Poles: 4
• Rated Current: 160 A
• Short-circuit Current Rating (Icu): 70 kA at 415 VAC
• Frequency Rating: 50/60 Hz
• Configuration: Basic frame, without trip unit
• Voltage Compatibility: Designed for systems up to 415 VAC

Applications & compatibility

This circuit breaker frame is commonly integrated into power distribution panels for manufacturing facilities, process control systems, and heavy machinery. Its high breaking capacity makes it ideal for protecting circuits in applications such as motor control centers, large conveyor systems, and industrial automation equipment where reliable fault protection is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV430409 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
