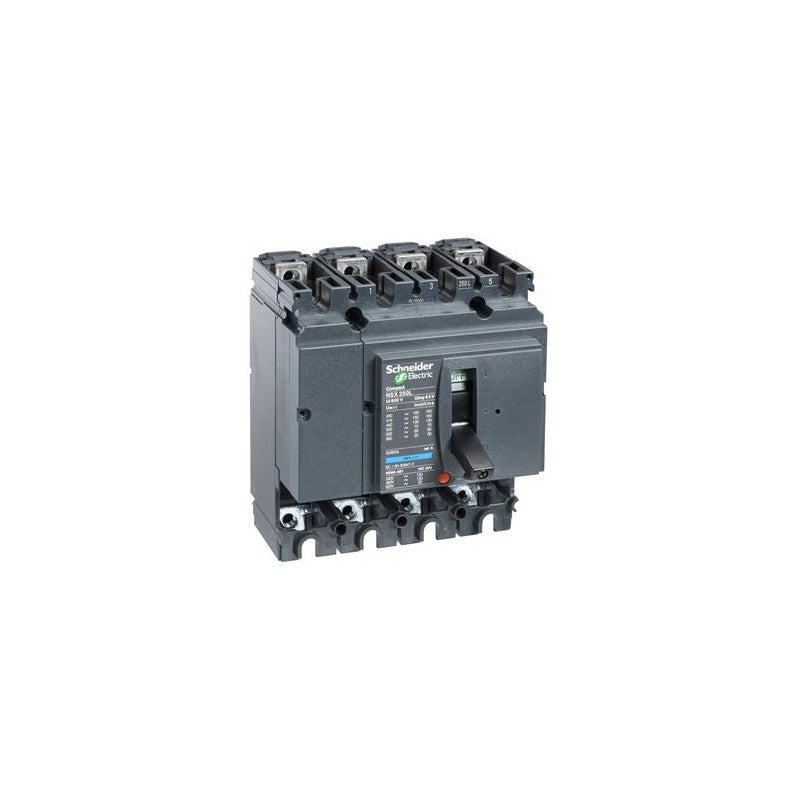

The Schneider Electric Compact NSX160L is a basic frame circuit breaker designed for robust electrical protection in industrial environments. This 4-pole unit is engineered to handle significant fault currents, providing reliable circuit interruption for demanding applications. Its construction is part of the widely recognized Compact NSX series, known for its modularity and performance.

Technical details

• Series: Compact NSX
• Model: NSX160L
• Number of Poles: 4
• Rated Current: 160 A
• Short-circuit Current Rating (Icu): 150 kA at 415 VAC 50/60 Hz
• Configuration: Basic frame, supplied without a trip unit
• Voltage Compatibility: Suitable for 415 VAC 50/60 Hz systems
• Frame Size: Designed for NSX160L applications

Applications & compatibility

This circuit breaker frame is commonly utilized in power distribution systems for machinery such as large motor control centers, industrial automation panels, and power generation equipment. It serves as a foundational component for building custom protection solutions where specific trip unit settings are required for optimal equipment safeguarding.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV430410 or contact our technical team for cross-reference assistance with compatible Compact NSX trip units and accessories.
