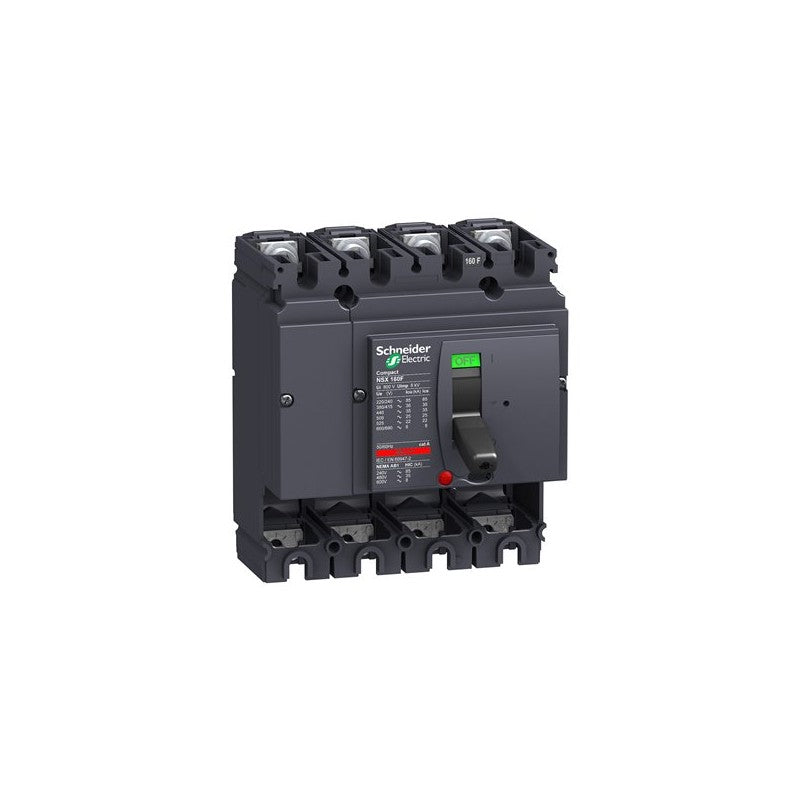

The Schneider Electric Compact NSX160N is a basic circuit breaker frame designed for robust electrical protection in industrial environments. This 4-pole frame is part of the widely recognized Compact NSX series, known for its reliability and modular design. It is engineered to accommodate a 160 Ampere current rating and is suitable for applications requiring a 415 VAC voltage class at 50/60 Hz.

Technical details

• Series: Compact NSX
• Model: NSX160N
• Frame Size: 160 A
• Number of Poles: 4
• Interrupting Capacity: 50 kA at 415 VAC
• Frequency Rating: 50/60 Hz
• Configuration: Basic frame, supplied without a trip unit
• Voltage Class: 415 VAC

Applications & compatibility

This Schneider Electric circuit breaker frame is commonly utilized in power distribution systems for manufacturing facilities, process control skids, and heavy machinery. Its 4-pole configuration makes it suitable for applications requiring the switching of all three phases plus a neutral conductor, such as in motor control circuits or specific power distribution panels. It serves as a foundational component for building custom protection solutions within the Compact NSX ecosystem.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV430411 or contact our technical team for cross-reference assistance with compatible Compact NSX trip units and accessories.
