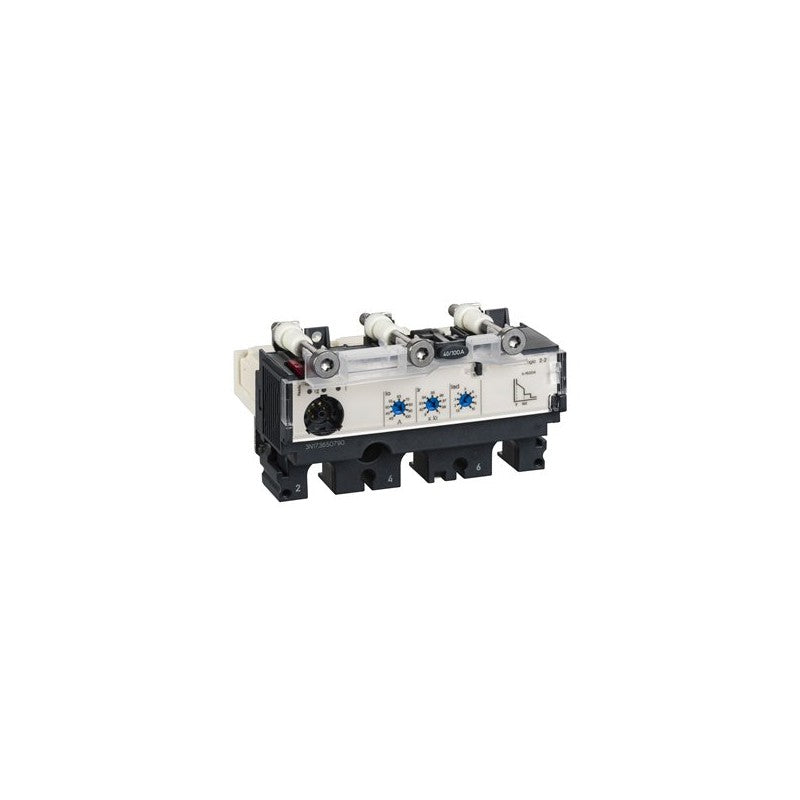

Designed for advanced circuit protection, the Schneider Electric Micrologic 2.2 trip unit is an electronic module engineered for Compact NSX 160/250 circuit breakers. This 3-pole unit provides precise overcurrent and short-circuit detection, ensuring the safety and reliability of electrical distribution systems in demanding industrial environments. Its sophisticated electronic sensing capabilities offer enhanced protection compared to thermal-magnetic trip units.

Technical details

• Trip Unit Type: Electronic Micrologic 2.2
• Compatible Circuit Breaker Series: Schneider Electric Compact NSX 160/250
• Number of Poles: 3
• Current Rating: 160 Amperes
• Protection Functions: Overcurrent and short-circuit detection
• Control Voltage: Not specified; consult manufacturer datasheet for details.
• Dimensions: Not specified; consult manufacturer datasheet for exact physical dimensions.
• Communication Protocol: Not specified; consult manufacturer datasheet for communication capabilities.

Applications & compatibility

This Micrologic 2.2 trip unit is integral to the protection schemes of industrial electrical panels and distribution boards. It is commonly found in applications requiring reliable and adjustable overcurrent protection, such as manufacturing facilities, data centers, and commercial buildings. Its compatibility with the Schneider Electric Compact NSX series ensures seamless integration into existing infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV430470 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
