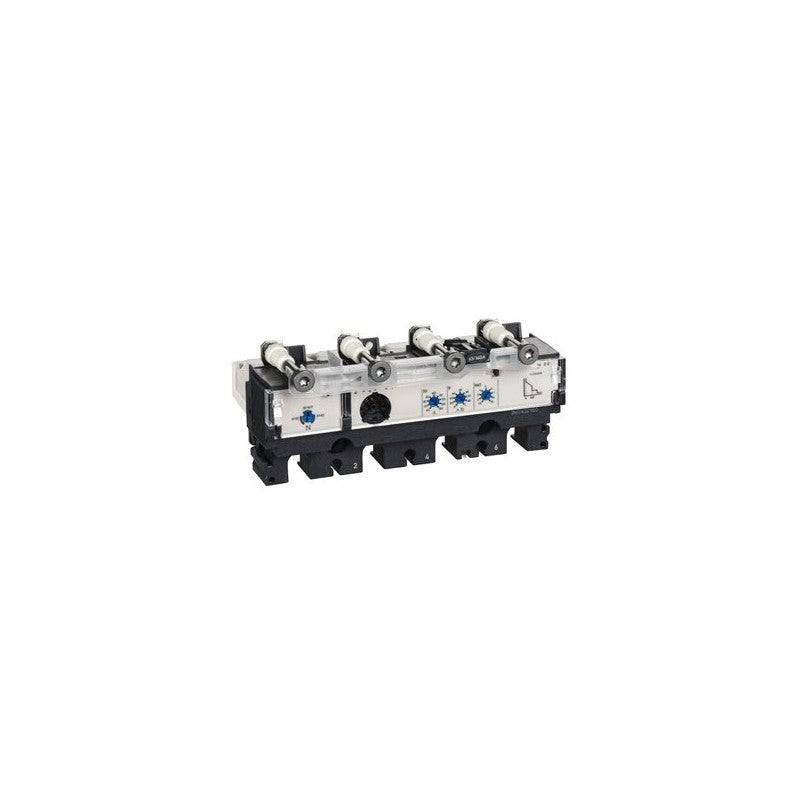

The Schneider Electric LV430480 is a Micrologic 2.2 electronic trip unit designed for use with Compact NSX 160/250 circuit breakers. This trip unit provides advanced protection and control capabilities for electrical distribution systems. It is engineered to deliver precise current sensing and tripping functions, ensuring the safety and reliability of connected equipment.

Technical details

• Trip Unit Type: Micrologic 2.2 Electronic Trip Unit
• Compatible Circuit Breaker Series: Compact NSX 160/250
• Number of Poles: 4
• Pole Configuration: 4d (4 normally open auxiliary contacts)
• Rated Current: 160A
• Protection Functions: Electronic trip unit with adjustable settings (refer to manufacturer datasheet for specific parameters)
• Mounting Type: Designed for integration within Schneider Electric Compact NSX chassis

Applications & compatibility

This trip unit is essential for applications requiring robust circuit protection in industrial and commercial environments. It is commonly found in power distribution panels for manufacturing facilities, data centers, and building management systems. The LV430480 ensures reliable operation and protection for machinery on packaging lines, in material handling systems, and within HVAC control systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV430480 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
