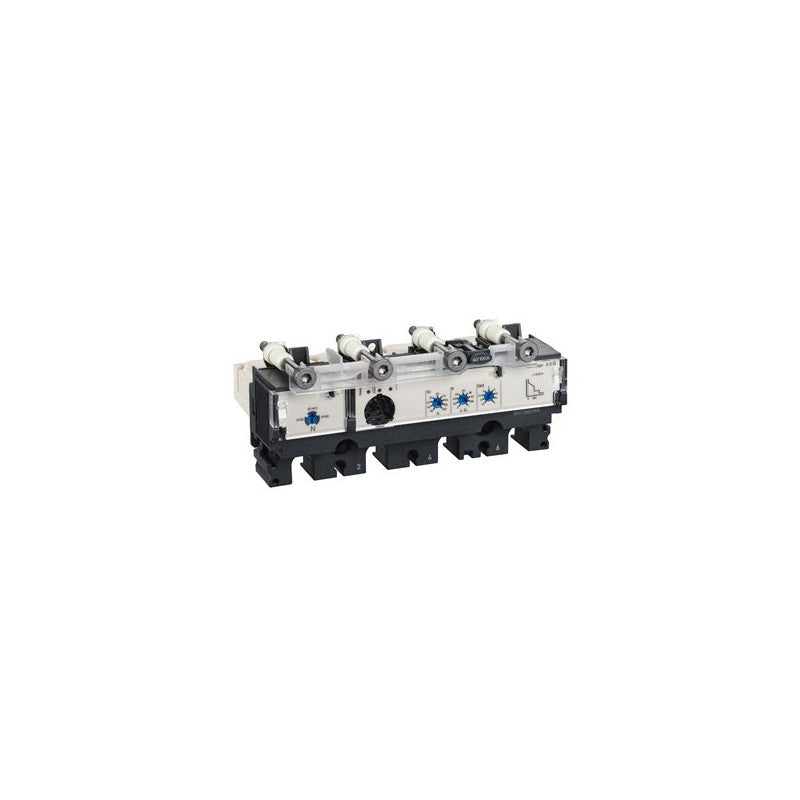

The Schneider Electric Micrologic 2.2 G trip unit is an electronic control module designed for Compact NSX 160/250 circuit breakers. This specific unit is configured for 160 Ampere applications and features a 4-pole (4d) configuration, providing comprehensive circuit protection for demanding industrial environments.

Technical details

• Trip Unit Type: Electronic Micrologic 2.2 G
• Compatible Circuit Breaker Series: Schneider Electric Compact NSX 160/250
• Current Rating: 160 A
• Number of Poles: 4-pole (4d)
• Protection Functions: Provides advanced electronic trip functions. Specific protection settings (e.g., Long Time, Short Time, Instantaneous) are determined by the Micrologic 2.2 G model and configuration.
• Control Module Type: Designed as a replacement or upgrade for existing trip units within the specified NSX breaker frame.
• Voltage Compatibility: While specific voltage ratings are not explicitly stated in the provided information, this trip unit is designed for use within the voltage class of the Compact NSX 160/250 circuit breakers. Buyers should verify compatibility with their specific breaker frame and system voltage against the manufacturer's datasheet.

Applications & compatibility

This Micrologic 2.2 G trip unit is integral to the protection schemes of Schneider Electric Compact NSX 160/250 circuit breakers. It is commonly deployed in electrical distribution systems for commercial buildings, manufacturing facilities, and data centers where reliable and adjustable overcurrent protection is essential. Its 4-pole configuration makes it suitable for applications requiring protection on all live conductors and neutral.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV430485 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
