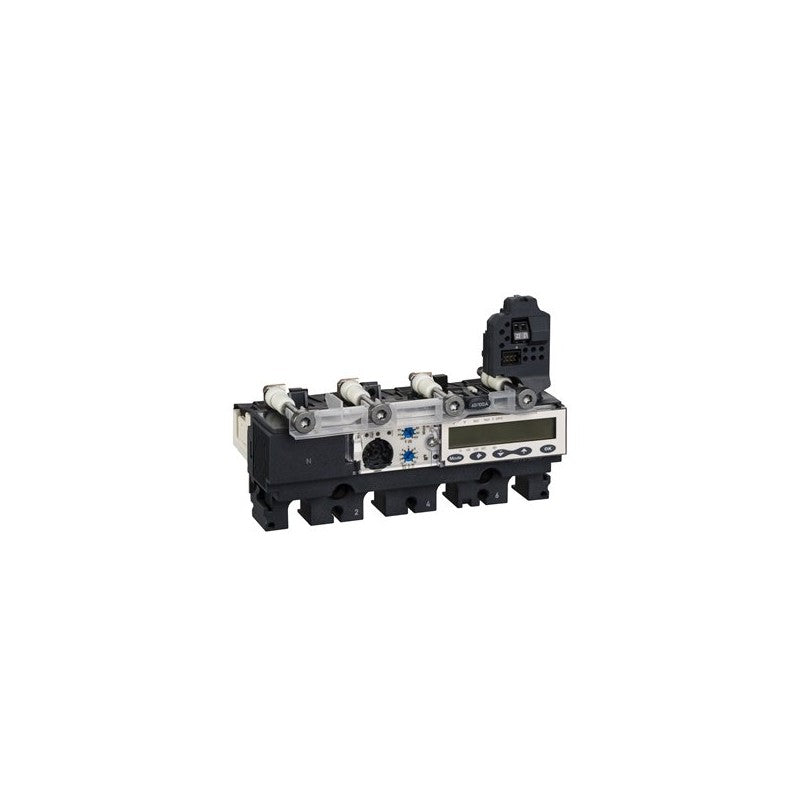

Schneider Electric's Micrologic 5.2 E trip unit is designed for use with Compact NSX 160/250 series circuit breakers. This electronic trip unit provides advanced protection and control capabilities for electrical distribution systems. It is specifically engineered for 160A rated applications and features a 4-pole (4d) configuration, ensuring comprehensive circuit isolation.

Technical details

• Trip Unit Series: Micrologic 5.2 E
• Compatible Circuit Breaker Series: Compact NSX 160/250
• Protection Type: Electronic
• Current Rating: 160 Amperes
• Number of Poles: 4 (4d)
• Protection Functions: Long-time, short-time, instantaneous, and ground fault (specific settings require datasheet verification)
• Display: Integrated digital display for status and settings
• Communication Capabilities: Modbus communication protocol (requires compatible interface module, verify with datasheet)

Applications & compatibility

This Micrologic 5.2 E trip unit is integral to Schneider Electric's Compact NSX circuit breaker range, commonly deployed in industrial facilities, commercial buildings, and data centers. It is suitable for protecting power distribution circuits in applications such as motor control centers, main distribution panels, and branch circuit protection where precise electronic tripping is required.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV430496 or contact our technical team for cross-reference assistance with compatible Micrologic trip units.
