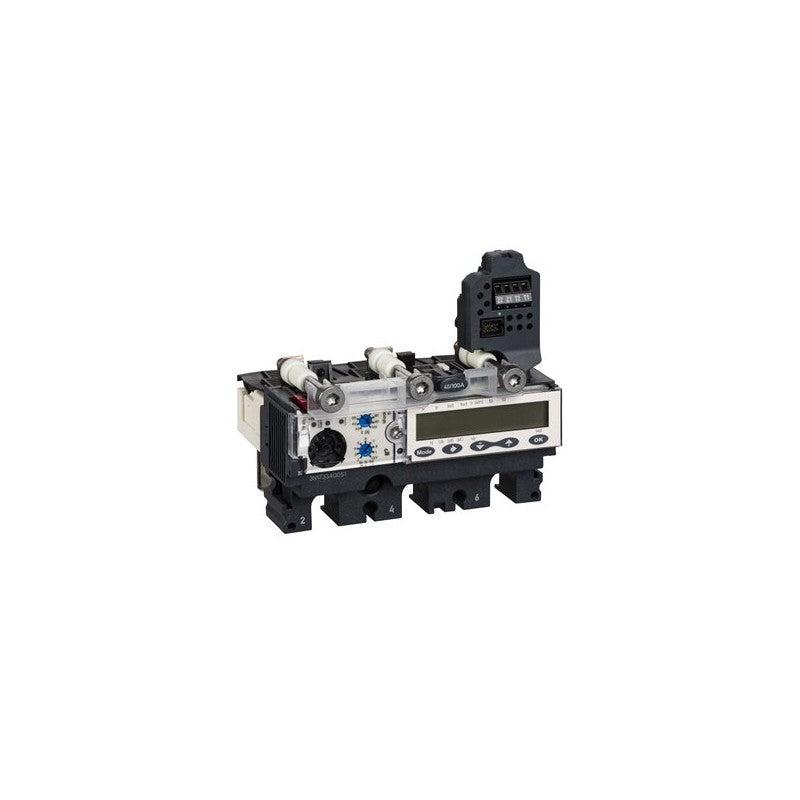

The Schneider Electric LV430505 is a Micrologic 6.2 A electronic trip unit designed for use with Compact NSX 160/250 circuit breakers. This trip unit provides advanced protection and control capabilities for electrical distribution systems. It is engineered for reliable operation in demanding industrial environments, offering precise current sensing and trip functions.

Technical details

• Trip Unit Series: Micrologic 6.2 A
• Type: Electronic Trip Unit
• Compatible Circuit Breaker Series: Compact NSX 160/250
• Current Rating: 160A
• Number of Poles: 3
• Pole Configuration: 3d (likely indicating 3 poles with 3 normally open auxiliary contacts)
• Protection Functions: Overload, short-circuit, ground-fault (specific settings and features depend on the 6.2 A designation and require datasheet verification)
• Control Interface: Electronic

Applications & compatibility

This trip unit is integral to the protection schemes of Compact NSX circuit breakers, commonly found in motor control centers, power distribution panels, and machinery control systems. Its application spans industries requiring robust circuit protection, including manufacturing facilities, data centers, and commercial buildings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV430505 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
