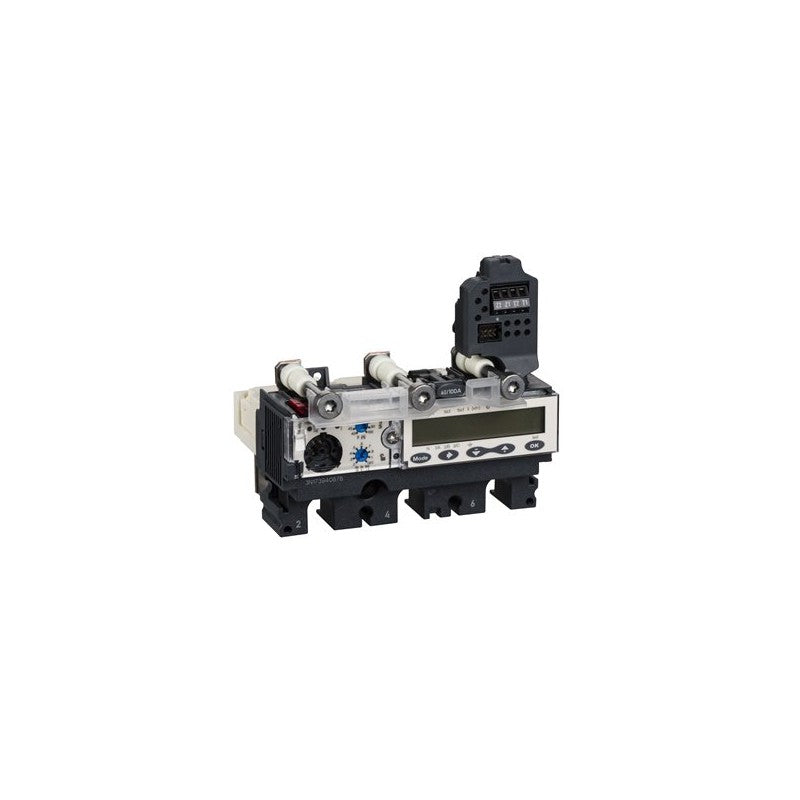

Schneider Electric's Micrologic 6.2 E trip unit is designed for use with Compact NSX 160/250 series circuit breakers. This electronic trip unit provides advanced protection and control capabilities for electrical distribution systems. It is specifically engineered for 160 Ampere applications and features a 3-pole, 3d configuration.

Technical details

• Series: Micrologic 6.2 E
• Compatible Circuit Breaker Series: Compact NSX 160/250
• Type: Electronic Trip Unit
• Current Rating: 160A
• Poles: 3
• Configuration: 3d (refer to manufacturer datasheet for detailed meaning of '3d')
• Protection Functions: Advanced electronic protection (specific functions require datasheet verification)
• Control Features: Integrated electronic control (specific features require datasheet verification)

Applications & compatibility

This trip unit is integral to the protection and control schemes of industrial electrical panels and distribution boards. It is commonly found in applications requiring precise overcurrent and short-circuit protection for machinery and equipment within manufacturing facilities, process plants, and commercial buildings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV430506 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
