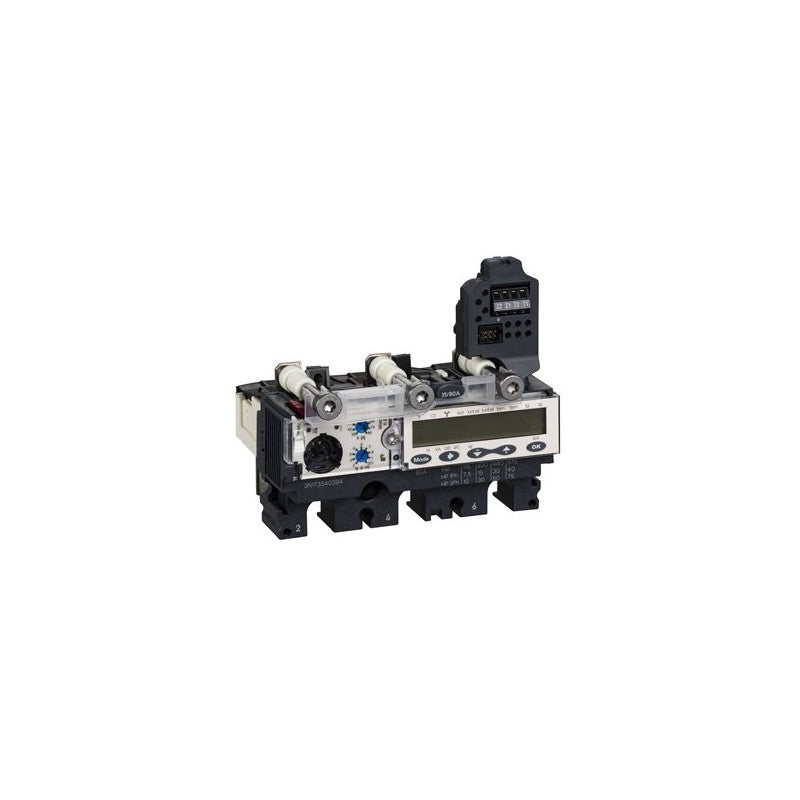

The Schneider Electric Micrologic 6.2 E-M trip unit is designed for use with Compact NSX 160/250 series circuit breakers. This electronic trip unit provides advanced protection and control capabilities for electrical distribution systems. It is specifically engineered for 3-pole configurations, ensuring comprehensive circuit protection.

Technical details

• Trip Unit Type: Electronic Micrologic 6.2 E-M
• Compatible Circuit Breaker Series: Schneider Electric Compact NSX 160/250
• Number of Poles: 3
• Current Rating: 150 A
• Protection Functions: E-M (Earth-fault and Magnetic trip)
• Configuration: 3d (3-pole, double break contacts)
• Voltage Compatibility: Refer to the manufacturer's datasheet for specific voltage class compatibility with the Compact NSX 160/250 series.

Applications & compatibility

This trip unit is essential for applications requiring precise overcurrent and earth-fault protection in industrial and commercial electrical distribution panels. It is commonly found in manufacturing facilities, data centers, and building management systems where reliable circuit protection for equipment rated up to 150A is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV430521 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
