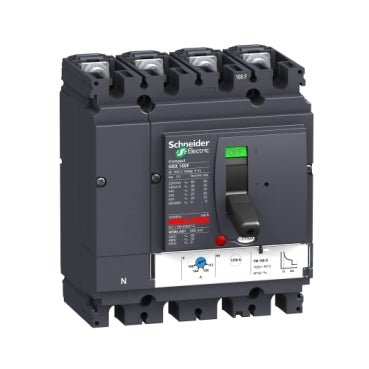

The Schneider Electric ComPact NSX160F circuit breaker is engineered for robust electrical protection in demanding industrial environments. This 4-pole breaker, part of the ComPact NSX series, offers a significant interrupting capacity of 36 kA at 415 VAC, ensuring safety and operational continuity. It features a factory-set TMD trip unit calibrated to 160 A, providing reliable overcurrent and short-circuit protection.

Technical details

• Series: ComPact NSX
• Model: NSX160F
• Configuration: 4-pole (4d)
• Rated Voltage: 415 VAC
• Interrupting Capacity: 36 kA at 415 VAC
• Trip Unit Type: TMD (Thermal Magnetic Drawout)
• Trip Unit Rating: 160 A
• Mounting Type: Drawout (for easy replacement and maintenance)

Applications & compatibility

This circuit breaker is suitable for use in power distribution systems within manufacturing plants, data centers, and commercial buildings. It is commonly integrated into main switchboards, motor control centers, and sub-distribution panels to protect circuits and equipment from electrical faults. Its drawout design facilitates maintenance and upgrades without requiring complete panel disassembly.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV430650 or contact our technical team for cross-reference assistance with compatible ComPact NSX components.
