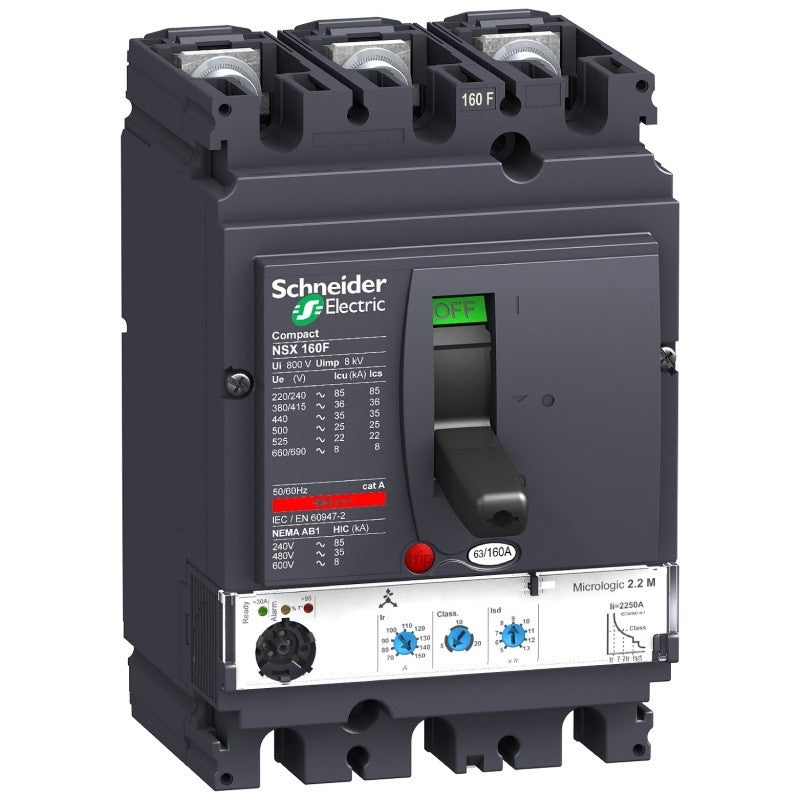

Schneider Electric's Compact NSX160F circuit breaker is engineered for robust protection in demanding industrial environments. This 3-pole (3d) device, part of the NSX series, offers a significant interrupting capacity of 36 kA at 415 VAC. It integrates the Micrologic 2.2 electronic trip unit, providing precise overcurrent protection and fault management for electrical distribution systems.

Technical details

• Series: Compact NSX
• Model: NSX160F
• Number of Poles: 3 (3d)
• Rated Voltage: 415 VAC
• Interrupting Capacity: 36 kA at 415 VAC
• Trip Unit: Micrologic 2.2 Electronic Trip Unit
• Rated Current: 160 A
• Frame Size: 160 A

Applications & compatibility

The NSX160F circuit breaker is suitable for main and branch circuit protection in motor control centers, power distribution panels, and machine tool applications. Its high interrupting rating makes it ideal for systems where fault currents can be substantial, ensuring safety and operational continuity in manufacturing facilities, processing plants, and infrastructure projects.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV430770 or contact our technical team for cross-reference assistance with compatible NSX series components.
