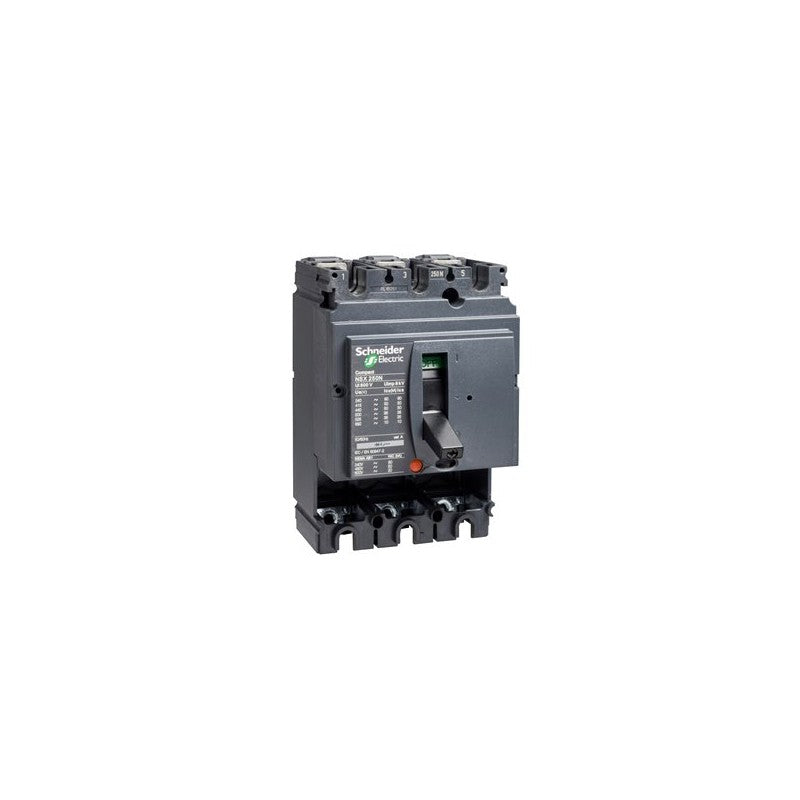

The Schneider Electric Compact NSX250N is a 3-pole basic frame circuit breaker designed for robust electrical protection in industrial environments. This unit is engineered to handle significant fault currents, providing essential safety for power distribution systems. It serves as a foundational component for building complete circuit breaker assemblies within the NSX series.

Technical details

• Series: Compact NSX
• Model: NSX250N
• Number of Poles: 3
• Interrupting Capacity: 50 kA at 415 VAC 50/60 Hz
• Current Rating: 250 A
• Configuration: Basic frame, supplied without a trip unit
• Voltage Compatibility: Suitable for 415 VAC 50/60 Hz systems
• Frame Size: Designed for 250 Ampere applications

Applications & compatibility

This Schneider Electric basic frame is commonly integrated into motor control centers, power distribution panels, and machinery requiring reliable overcurrent protection. It is suitable for applications in manufacturing plants, data centers, and building services where consistent power delivery and safety are paramount. The NSX250N frame is designed to accept various trip units, allowing for customization to specific protection requirements.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV431406 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
