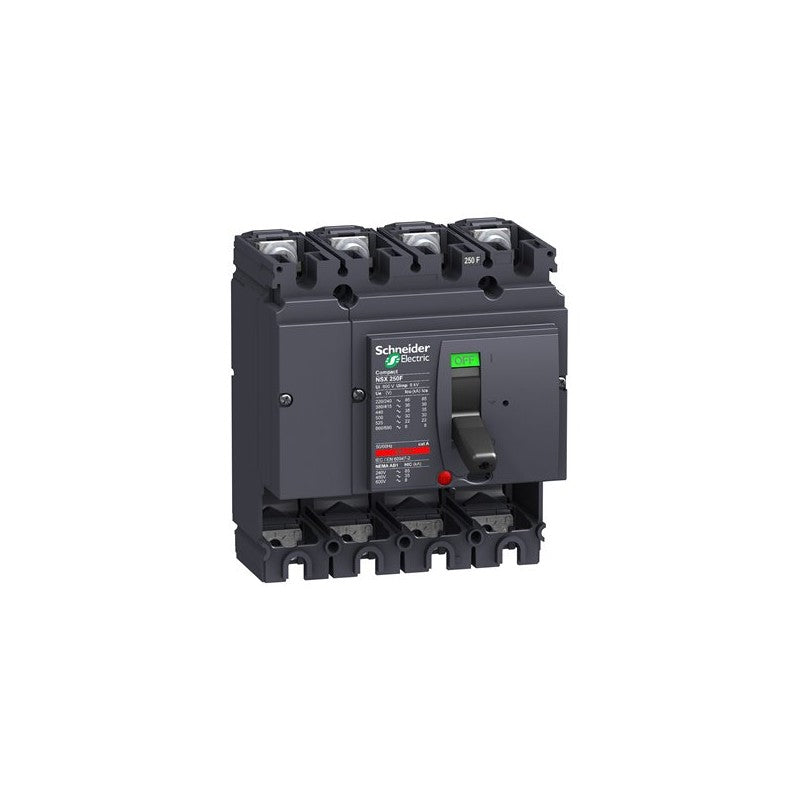

The Schneider Electric Compact NSX250F is a basic circuit breaker frame designed for robust electrical protection in industrial environments. This 4-pole frame is engineered to house a trip unit and provides a significant interrupting capacity, making it suitable for applications requiring reliable fault current limitation. It serves as a foundational component for building custom circuit breaker configurations within the NSX series.

Technical details

• Series: Compact NSX
• Model: NSX250F
• Frame Size: 250 A
• Number of Poles: 4
• Interrupting Capacity: 36 kA at 415 VAC 50/60 Hz
• Configuration: Basic frame, supplied without a trip unit
• Voltage Compatibility: Rated for 415 VAC at 50/60 Hz
• Mounting Type: Fixed (verify mounting details against manufacturer datasheet)

Applications & compatibility

This circuit breaker frame is commonly integrated into power distribution systems for manufacturing plants, process control facilities, and heavy machinery operations. It is essential for building custom protection solutions for motor control centers, main distribution panels, and sub-distribution boards where specific trip unit settings are required.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV431408 or contact our technical team for cross-reference assistance with compatible Compact NSX trip units and accessories.
