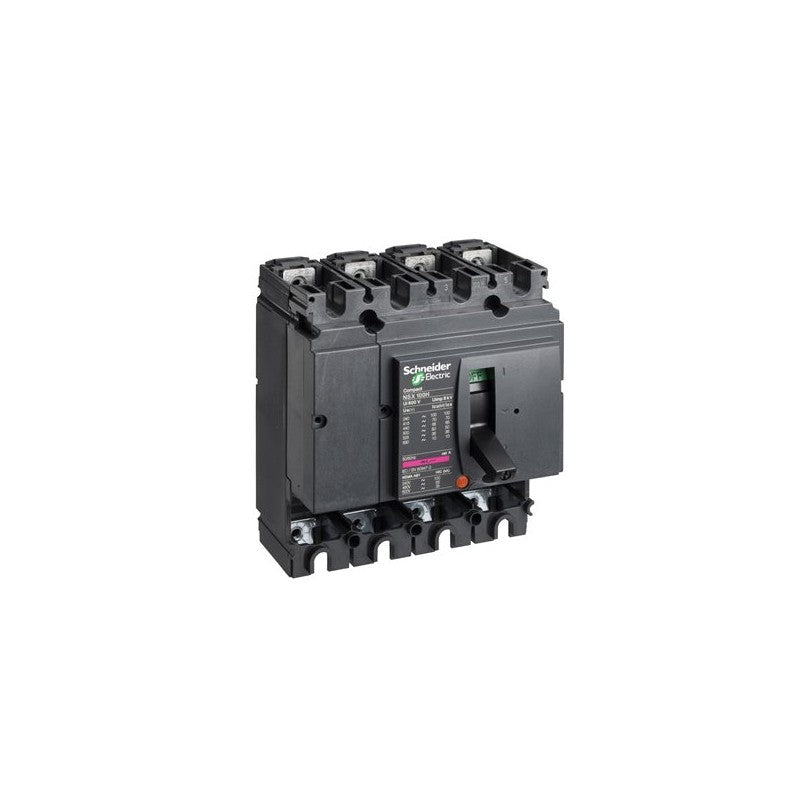

The Schneider Electric Compact NSX250H is a basic frame circuit breaker designed for robust electrical protection in demanding industrial environments. This 4-pole unit is engineered to provide reliable circuit interruption, commonly found in power distribution panels and motor control centers within manufacturing facilities.

Technical details

• Series: Compact NSX
• Model: NSX250H
• Number of Poles: 4
• Rated Current: 250 A
• Interrupting Capacity: 70 kA at 415 VAC 50/60 Hz
• Configuration: Basic frame, without trip unit
• Voltage Compatibility: Suitable for 415 VAC 50/60 Hz systems

Applications & compatibility

This circuit breaker frame is integral to Schneider Electric's NSX range, offering a foundation for custom protection solutions. It is frequently deployed in applications requiring high short-circuit withstand capability, such as in heavy machinery, large motor circuits, and main incoming power feeds for industrial plants. Compatibility with various trip units allows for tailored protection settings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV431409 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
