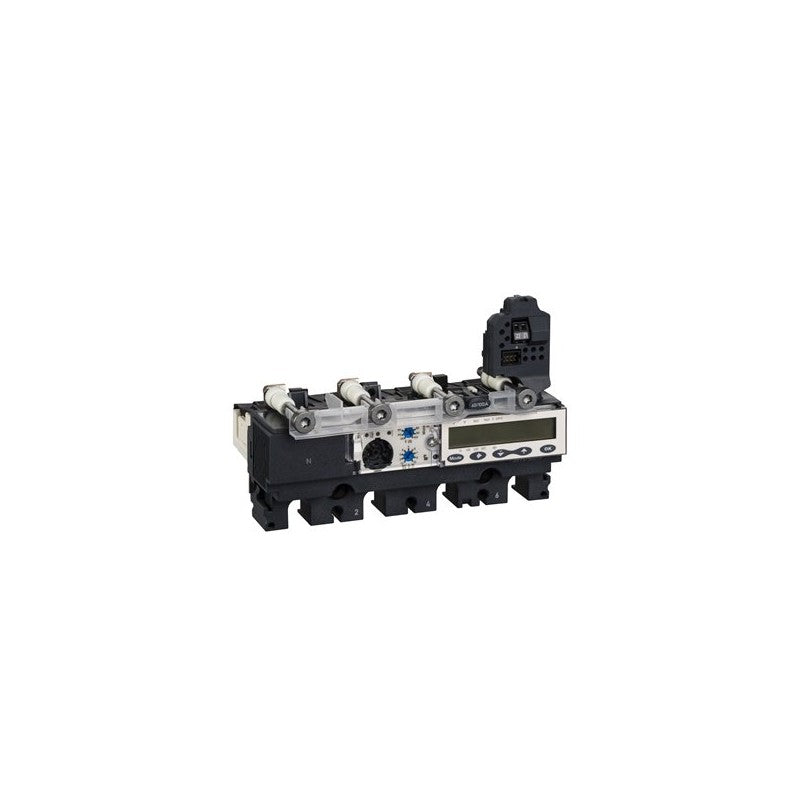

The Schneider Electric LV431496 is a Micrologic 5.2 E trip unit designed for use with Compact NSX 250 circuit breakers. This electronic trip unit provides advanced protection and control capabilities for electrical distribution systems. It is engineered to deliver precise current monitoring and fault interruption, ensuring the safety and reliability of connected equipment.

Technical details

• Trip Unit Type: Micrologic 5.2 E
• Series Compatibility: Compact NSX 250
• Protection Type: Electronic
• Rated Current: 250A
• Number of Poles: 4
• Pole Configuration: 4d (4 normally open auxiliary contacts)
• Functionality: Overload, short-circuit, and ground-fault protection (specific settings to be confirmed via manufacturer datasheet)
• Communication Capabilities: Advanced electronic features suggest potential for communication protocols, verify with manufacturer datasheet for specific options.

Applications & compatibility

This trip unit is integral to the protection schemes of industrial electrical panels and switchgear. It is commonly found in applications requiring robust circuit breaker protection, such as manufacturing facilities, data centers, and commercial buildings. Its compatibility with the Compact NSX 250 platform makes it suitable for a wide range of power distribution and motor control circuits.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV431496 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
