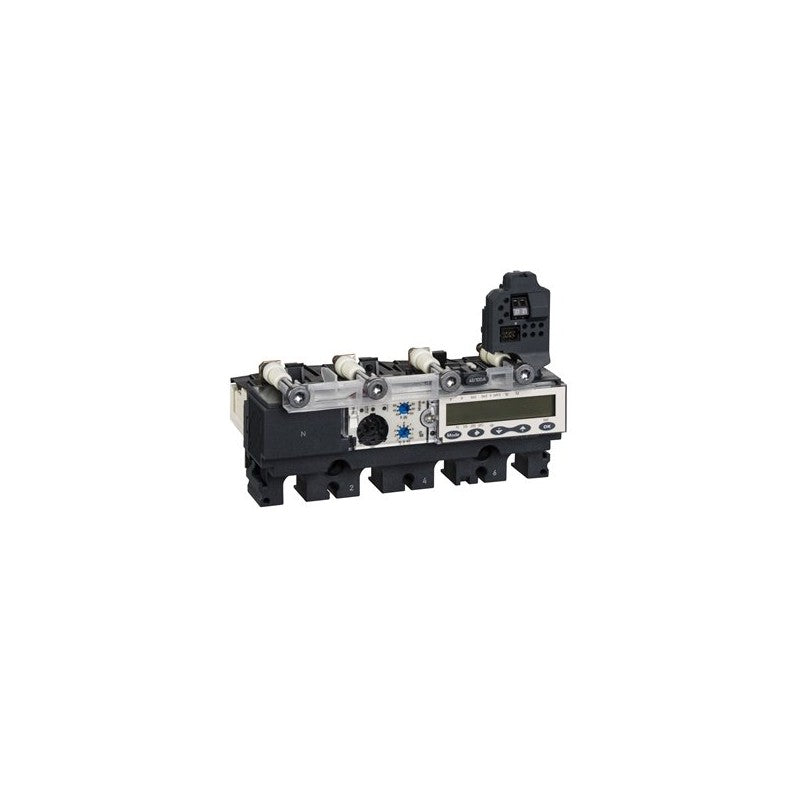

The Schneider Electric LV431515 is a Micrologic 6.2 A electronic trip unit designed for use with Compact NSX 250 circuit breakers. This trip unit provides advanced protection and control capabilities for electrical distribution systems. It is engineered to deliver precise current sensing and tripping functions, ensuring the safety and reliability of equipment.

Technical details

• Trip Unit Series: Micrologic 6.2 A
• Compatible Circuit Breaker Series: Compact NSX 250
• Type: Electronic Trip Unit
• Rated Current: 250A
• Number of Poles: 4
• Configuration: 4d (typically indicates 4 normally open auxiliary contacts)
• Protection Functions: Includes adjustable long-time, short-time, instantaneous, and ground fault protection settings (specific ranges to be confirmed via datasheet).
• Display: Integrated digital display for setting adjustments and fault indication.

Applications & compatibility

This trip unit is integral to the protection schemes of medium-voltage switchgear and distribution panels. It is commonly found in industrial facilities, commercial buildings, and data centers where reliable circuit protection is paramount. Its compatibility with the Compact NSX 250 platform ensures seamless integration into existing Schneider Electric electrical infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV431515 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
