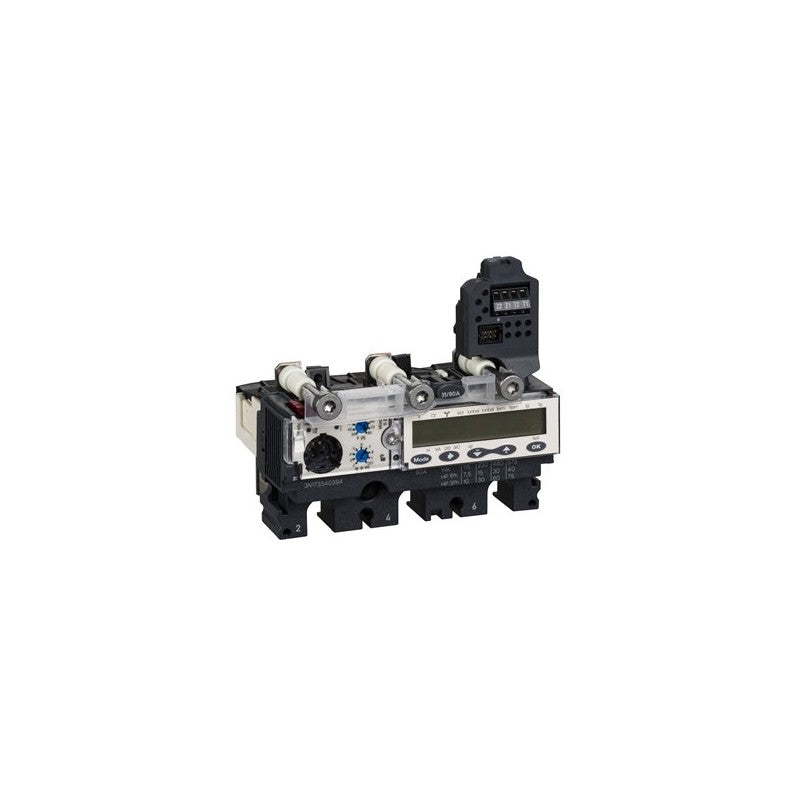

The Schneider Electric Micrologic 6.2 E-M trip unit is designed for use with Compact NSX 250 circuit breakers. This electronic trip unit, part of the Micrologic series, offers advanced protection and control capabilities for electrical distribution systems. It is specifically engineered for 3-pole applications, ensuring comprehensive circuit protection.

Technical details

• Trip Unit Type: Electronic Micrologic 6.2 E-M
• Compatible Circuit Breaker Series: Compact NSX 250
• Number of Poles: 3
• Current Rating: 220 A
• Protection Functions: E-M (Earth-Leakage and Magnetic Overcurrent)
• Control Type: Electronic
• Configuration: 3d (refer to manufacturer datasheet for specific configuration details)

Applications & compatibility

This trip unit is essential for applications requiring precise overcurrent and earth-leakage protection in industrial and commercial electrical distribution panels. It is commonly found in motor control centers, power distribution boards, and machinery control systems where reliable circuit interruption is critical for safety and operational continuity.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV431521 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
