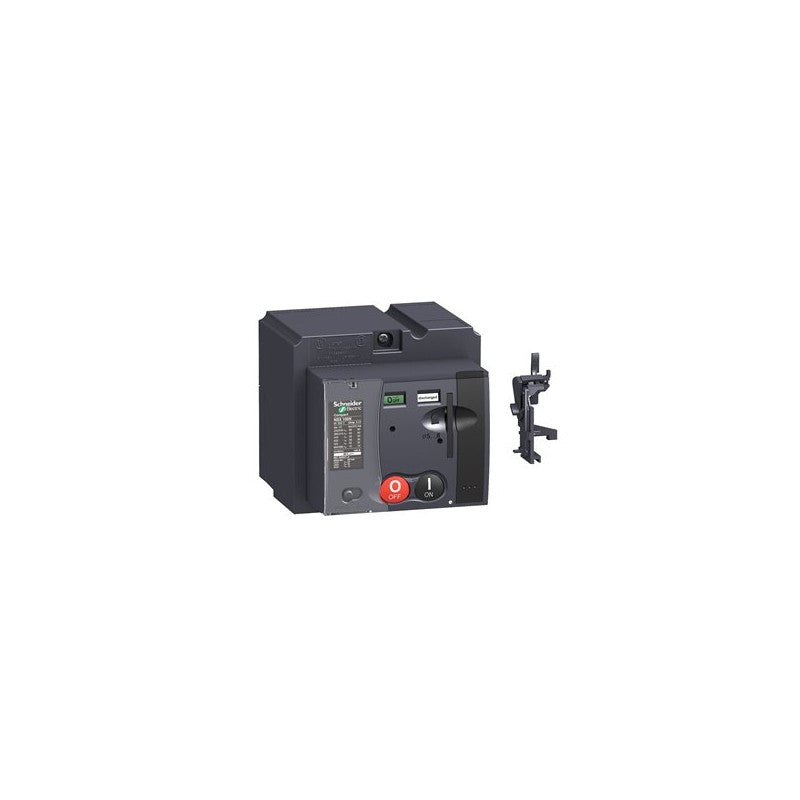

This Schneider Electric motor mechanism, designated for the Compact NSX250 and PowerPact Multistandard J series, facilitates the operation of circuit breakers. It is engineered to function within specific electrical parameters, ensuring reliable actuation for power distribution and protection systems. The mechanism is designed for integration into industrial control panels and switchgear assemblies.

Technical details

• Series Compatibility: Compact NSX250, PowerPact Multistandard J
• Voltage Rating (AC): 220 VAC to 240 VAC at 50/60 Hz
• Voltage Rating (AC): 208 VAC to 277 VAC at 60 Hz
• Type: Motor mechanism
• Function: Provides remote or automatic operation for circuit breakers
• Control Power: Requires AC power supply within the specified voltage ranges for operation
• Actuation: Designed for electrical actuation of breaker trip and close mechanisms

Applications & compatibility

This motor mechanism is commonly employed in medium-voltage switchgear and distribution panels for applications requiring remote control or automatic reclosing capabilities. It is suitable for use in industrial facilities, data centers, and commercial buildings where reliable circuit protection and operational flexibility are paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV431541 or contact our technical team for cross-reference assistance with compatible Compact NSX250 components.
